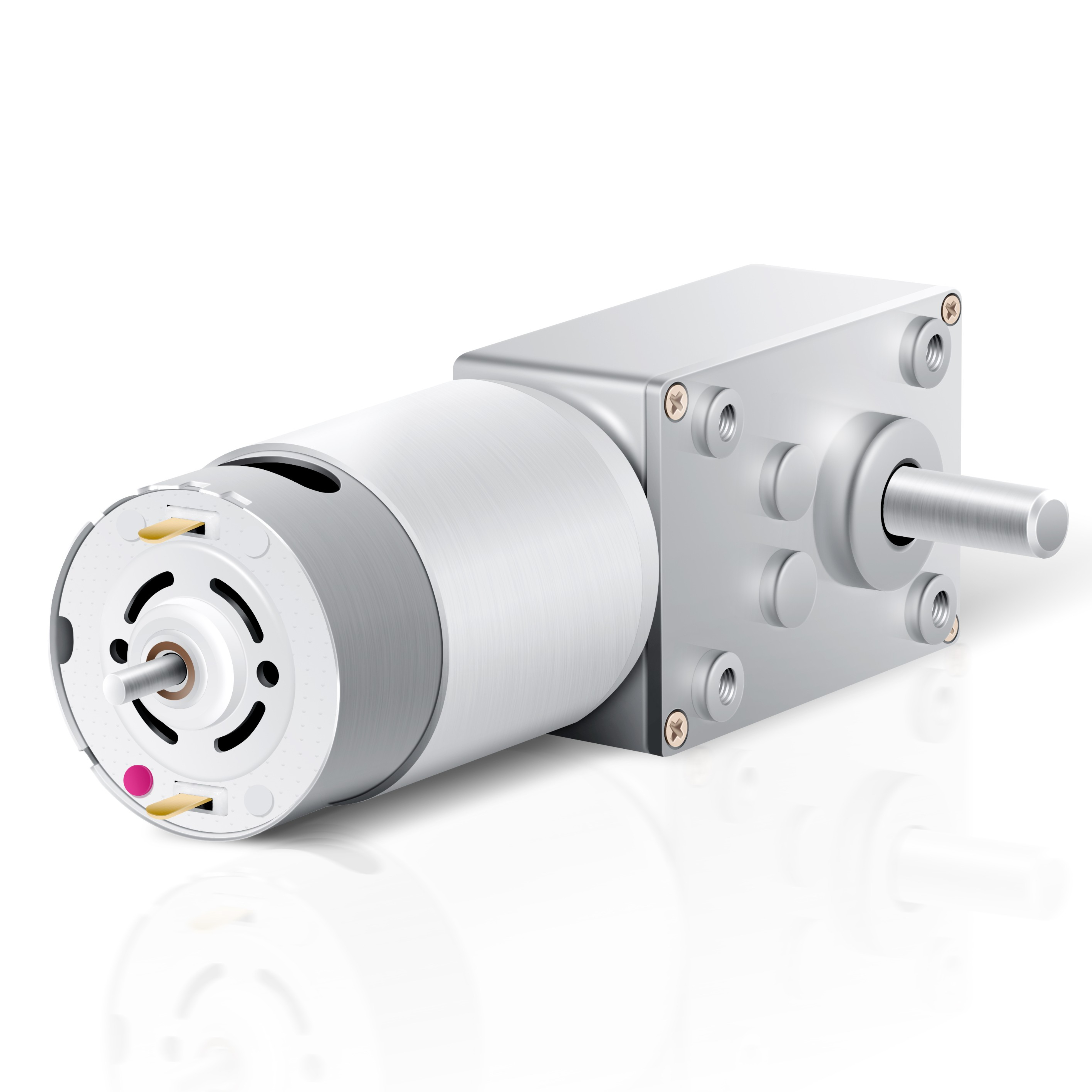

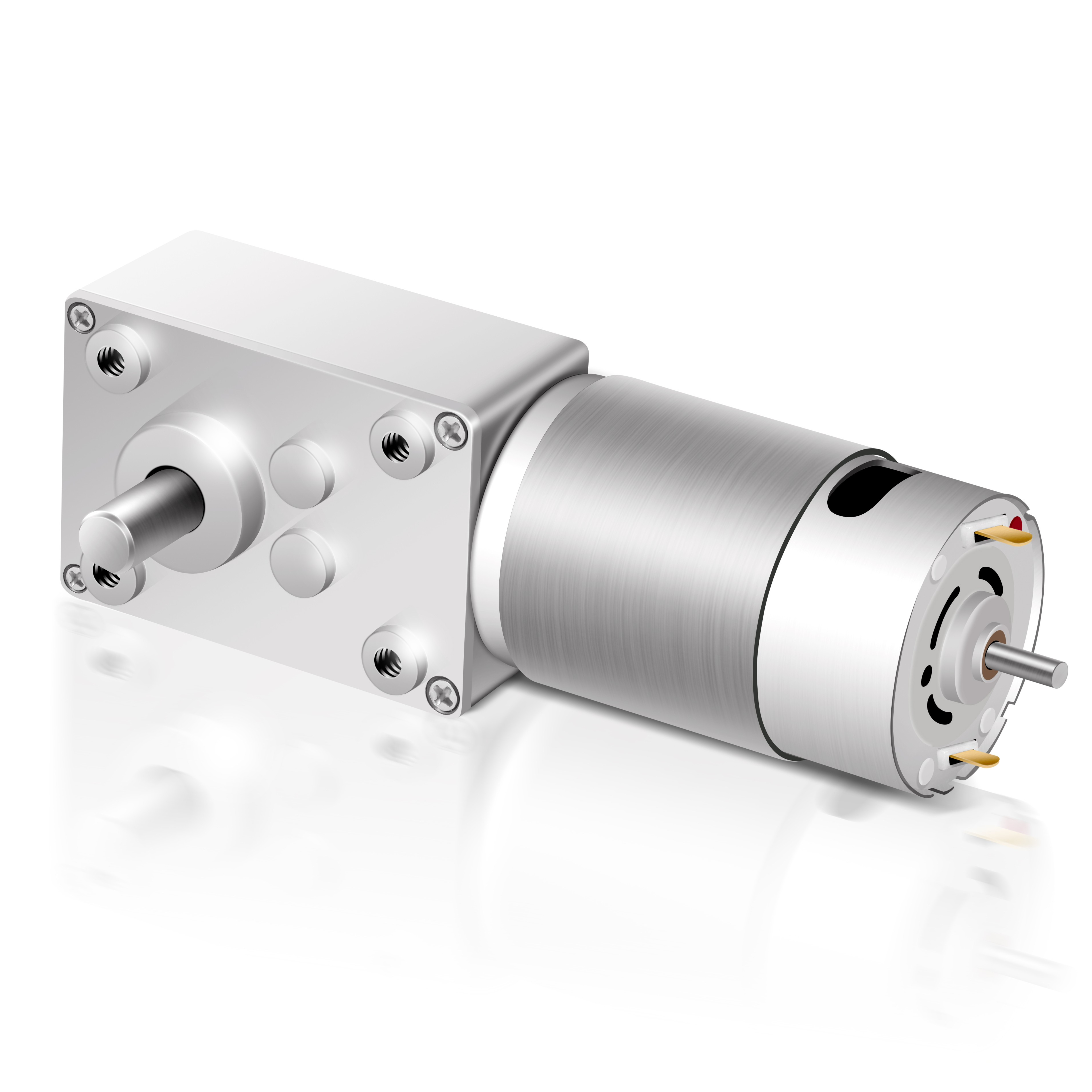

Factory 0.8nm Worm Gear Motor Brush Brushless Worm Gear Motor For For 3d Printing Pen

Product Description

Promotion & Highlights
Promotion Image 1
Promotion Image 2

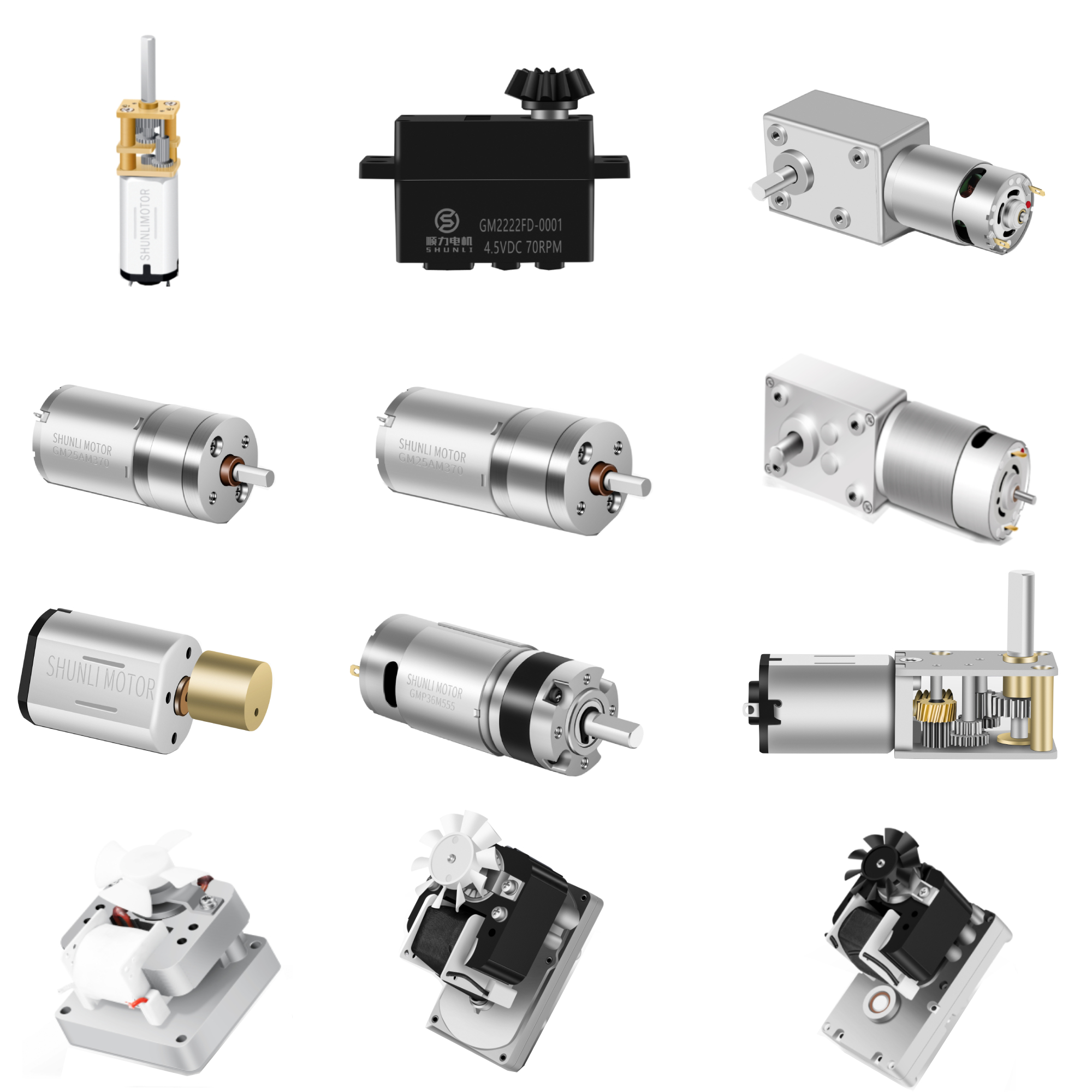

Product Range
Product Description
Product Details

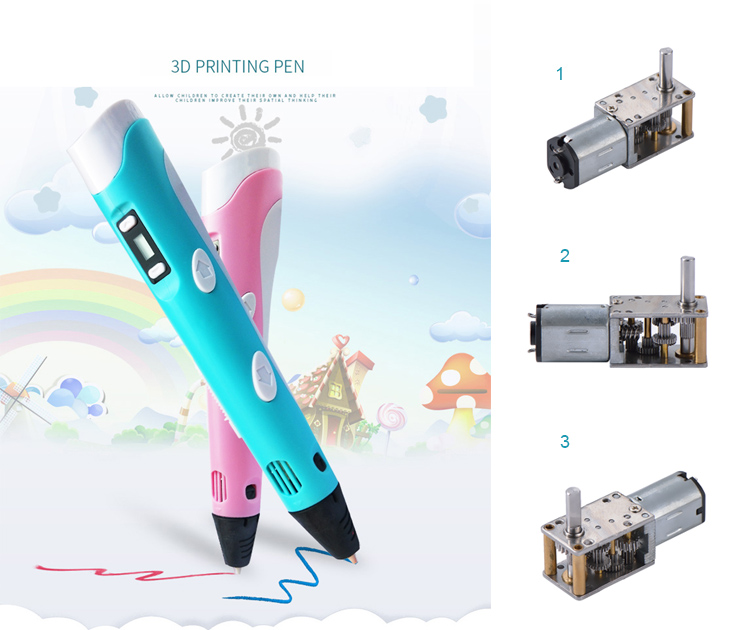

Worm Gear Motor Detail
Gearbox Technical Data
Ratio 41K / 82K / 95K / 190K / 219K / 438K / 504K / 1007K
Max. Rated Torque 300~800 gf.cm
Max. Gear Breaked Torque 1000~3000 gf.cm
Gearbox Efficiency 12%~35%
Gearmotor Technical Data
Gearmotor Model Ratio Rated Voltage (V) No-Load Rated Stall
Speed Current Speed Current Torque Current Torque
RPM mA RPM mA gf.cm mA gf.cm
GM1220EMN20-95K 1:95 4.5 VDC 145 ≤ 70 122 ≤ 200 80 ≤ 700 750
GM1220EMN30-1007K 1:1007 12 VDC 25 ≤ 90 22 ≤ 230 1200 ≤ 400 4200

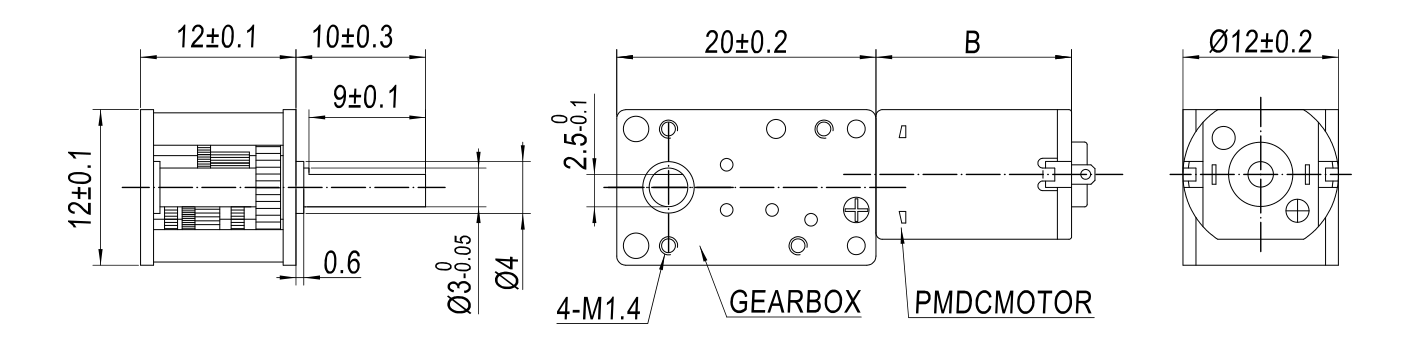

Technical Drawing
PMDC MOTOR Technical Data
Model Length (mm) Voltage (V) No-Load Rated Stall
SL-N20 04514000 15 4.5 VDC 14000 ≤ 40 12000 ≤ 130 2.5 ≤ 650 15
SL-N30 1225400 20 12 VDC 25400 ≤ 50 22600 ≤ 170 5 ≤ 380 42
Applications

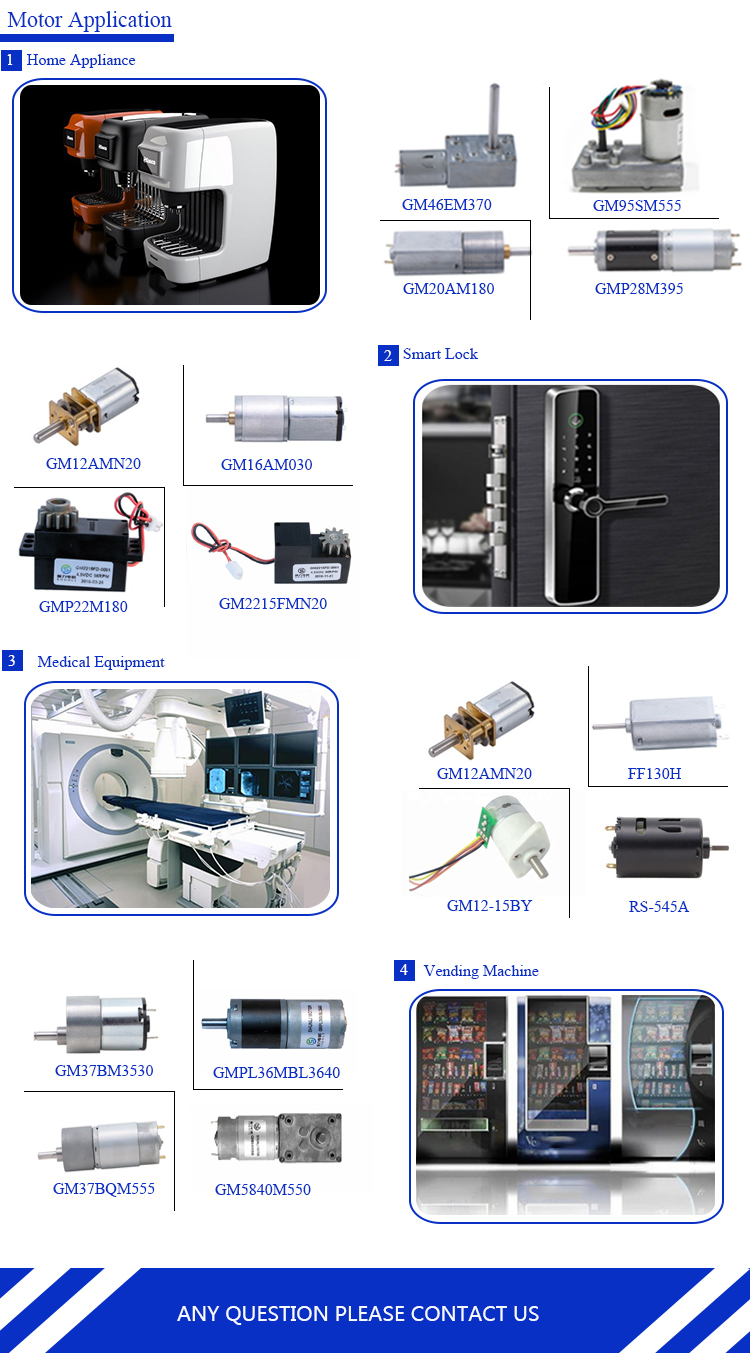

Worm Gear Motor Applications
Customer Evaluation & Certification
Customer Feedback
Certification 1
Certification 2
Industrial Manufacturing Excellence

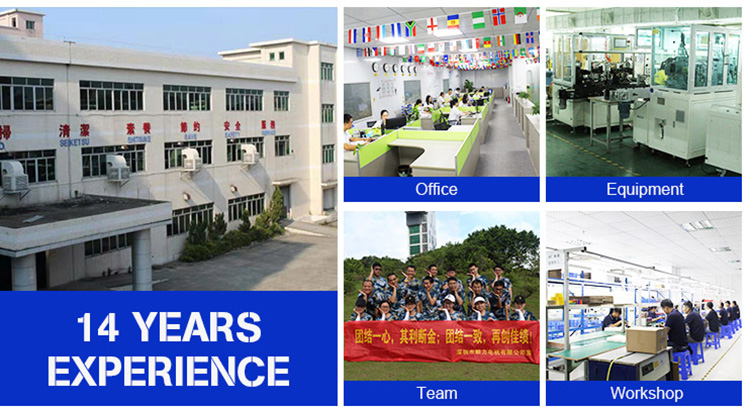

Factory Environment
Production Capacity

Our company is a high-tech enterprise integrating the research, development, production and sales of various kinds of micro DC motor, geared motor, planetary geared motor, shade pole geared motor and special gearbox motor. Products are widely used in automobiles, communications equipment, smart home, medical equipment, intelligent security, household appliances, western kitchen equipment, machinery and electronics and other high-end transmission structures, products are exported to more than 50 countries and regions at home and abroad.

Workshop
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a factory. We specialize in micro DC motors and DC gear motors for more than 14 years.
What is the payment term for a new customer?
We can facilitate online assurance orders which support Master Card, Visa, etc. Customers can also pay via PayPal or TT.
Can you customize the motor if I can't find a suitable one on the website?
Yes, we can customize a suitable motor according to specific requirements and technical parameters.
Do you have certificates for the motors?
Yes, we have CE, FCC, ISO, and other relevant certifications. If you have other specific certificate requirements, we can apply for them as needed.
How is your Quality Control managed?

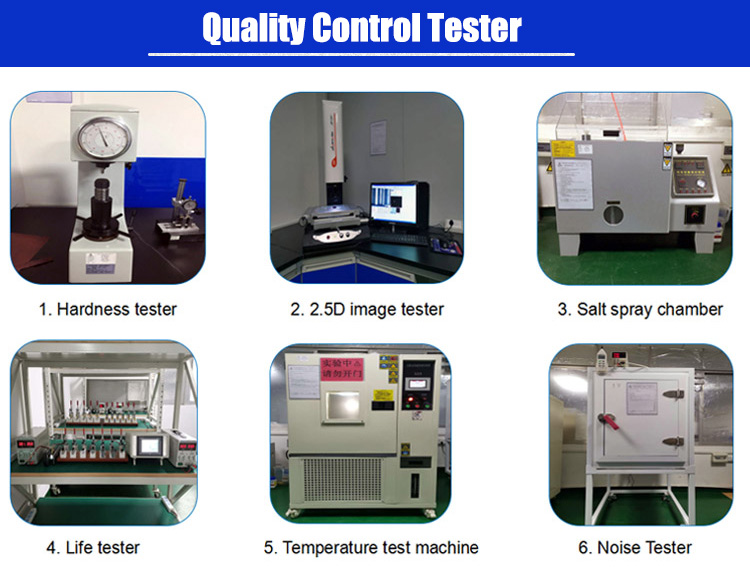

We have professional inspection staff for every production process. Completed motors undergo full testing using equipment such as Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise Testers.
What applications are these motors suitable for?
Our motors are ideal for 3D printing pens, smart home devices, medical equipment, and high-end transmission structures across various industries.
