Home > DC Gear Motor > 37mm Dc Gear Motor Low Noise High Torque 12v 24V Cw/ccw with Mini Dc Gearbox Motor with Encoder

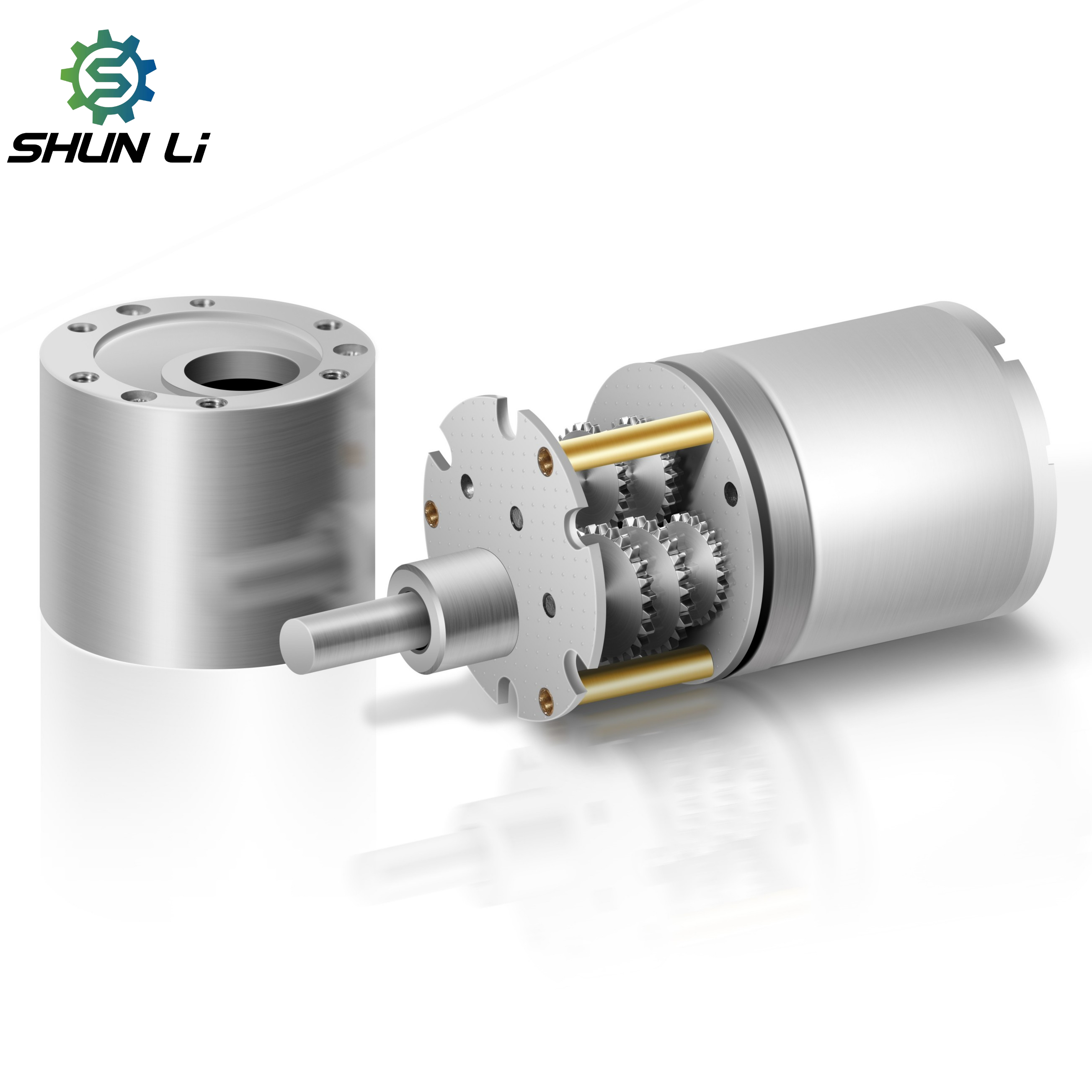

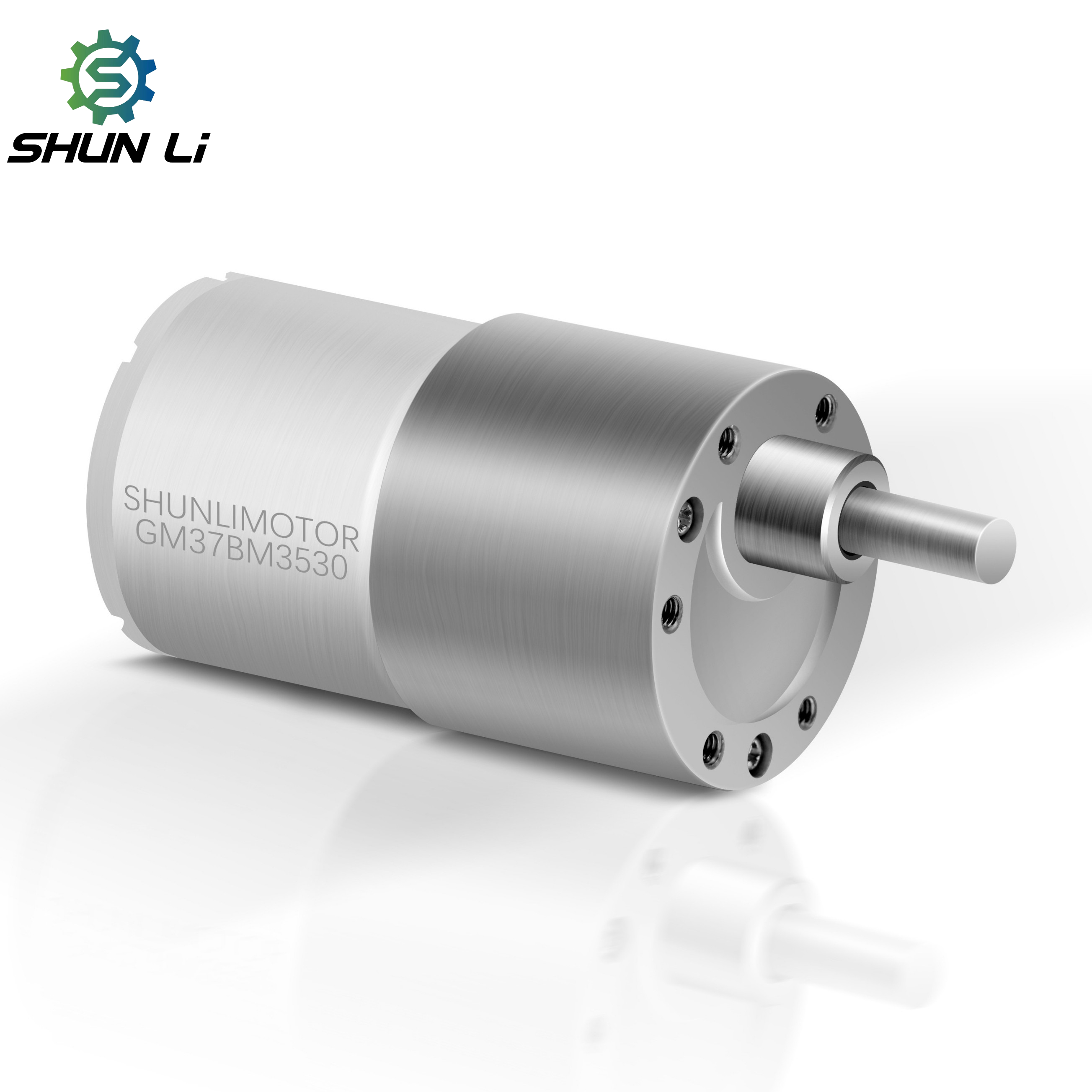

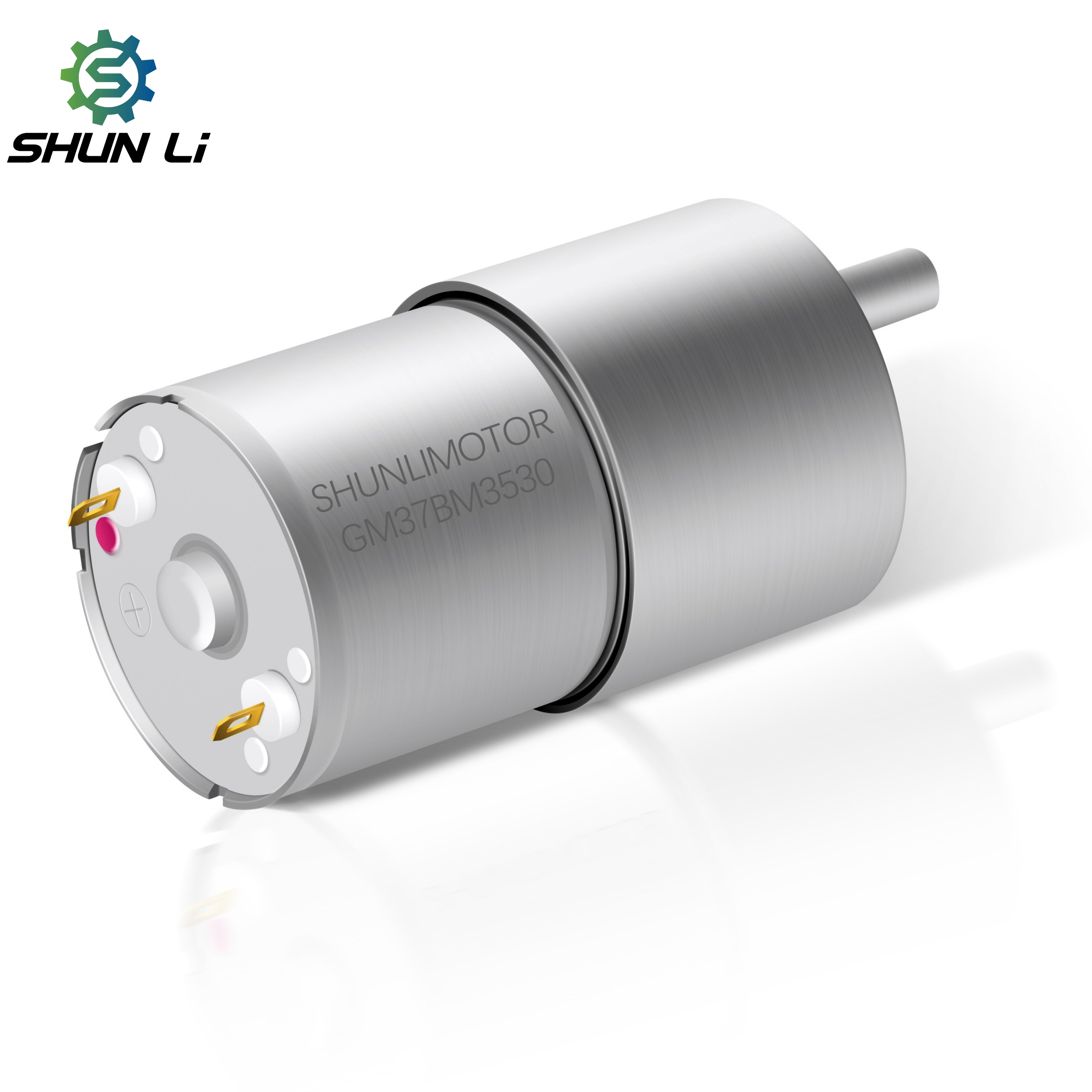

37mm Dc Gear Motor Low Noise High Torque 12v 24V Cw/ccw with Mini Dc Gearbox Motor with Encoder
37mm Dc Gear Motor Low Noise High Torque 12v 24V Cw/ccw with Mini Dc Gearbox Motor with Encoder
37mm Dc Gear Motor Low Noise High Torque 12v 24V Cw/ccw with Mini Dc Gearbox Motor with Encoder
37mm Dc Gear Motor Low Noise High Torque 12v 24V Cw/ccw with Mini Dc Gearbox Motor with Encoder
37mm Dc Gear Motor Low Noise High Torque 12v 24V Cw/ccw with Mini Dc Gearbox Motor with Encoder
1 / 5
37mm Dc Gear Motor Low Noise High Torque 12v 24V Cw/ccw with Mini Dc Gearbox Motor with Encoder
37mm Dc Gear Motor Low Noise High Torque 12v 24V Cw/ccw with Mini Dc Gearbox Motor with Encoder
37mm Dc Gear Motor Low Noise High Torque 12v 24V Cw/ccw with Mini Dc Gearbox Motor with Encoder
37mm Dc Gear Motor Low Noise High Torque 12v 24V Cw/ccw with Mini Dc Gearbox Motor with Encoder
37mm Dc Gear Motor Low Noise High Torque 12v 24V Cw/ccw with Mini Dc Gearbox Motor with Encoder

37mm Dc Gear Motor Low Noise High Torque 12v 24V Cw/ccw with Mini Dc Gearbox Motor with Encoder

Send Inquiry

Product Description

Product Overview
📋 Product Specifications
Motor Technical Details
Product Model GM37BM3525/3530/3540
Gearbox Length 25mm-40mm
Speed 13RPM-100RPM
Voltage 12V/24V/12V
Torque 0.25 N.m/1.2 N.m/0.5 N.m
Customization Transmission Dimensions and Motor Parameters Can Be Customized
🔍 Technical Drawings & Dimensions

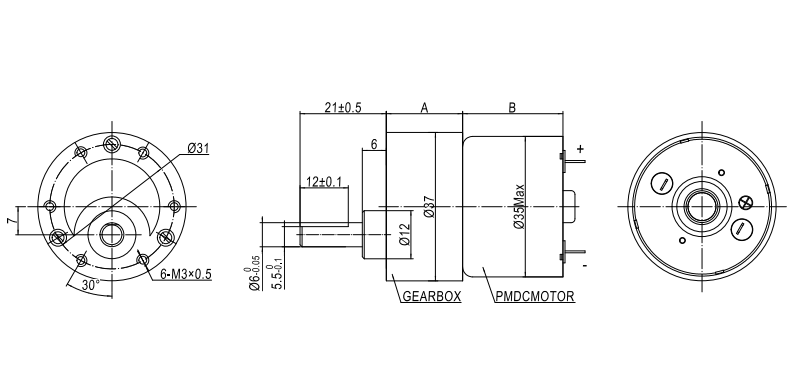

Drawing 1

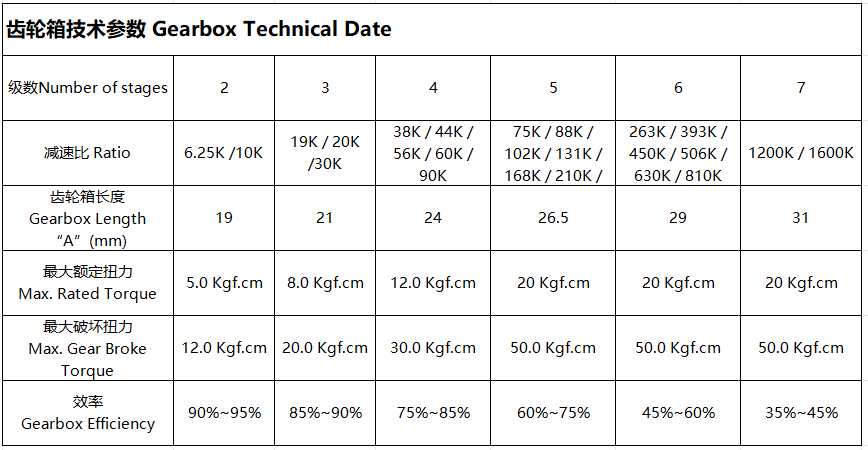

Drawing 2

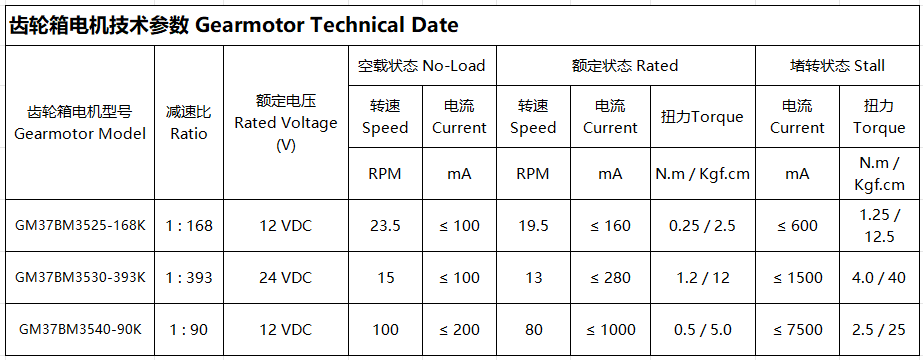

Drawing 3

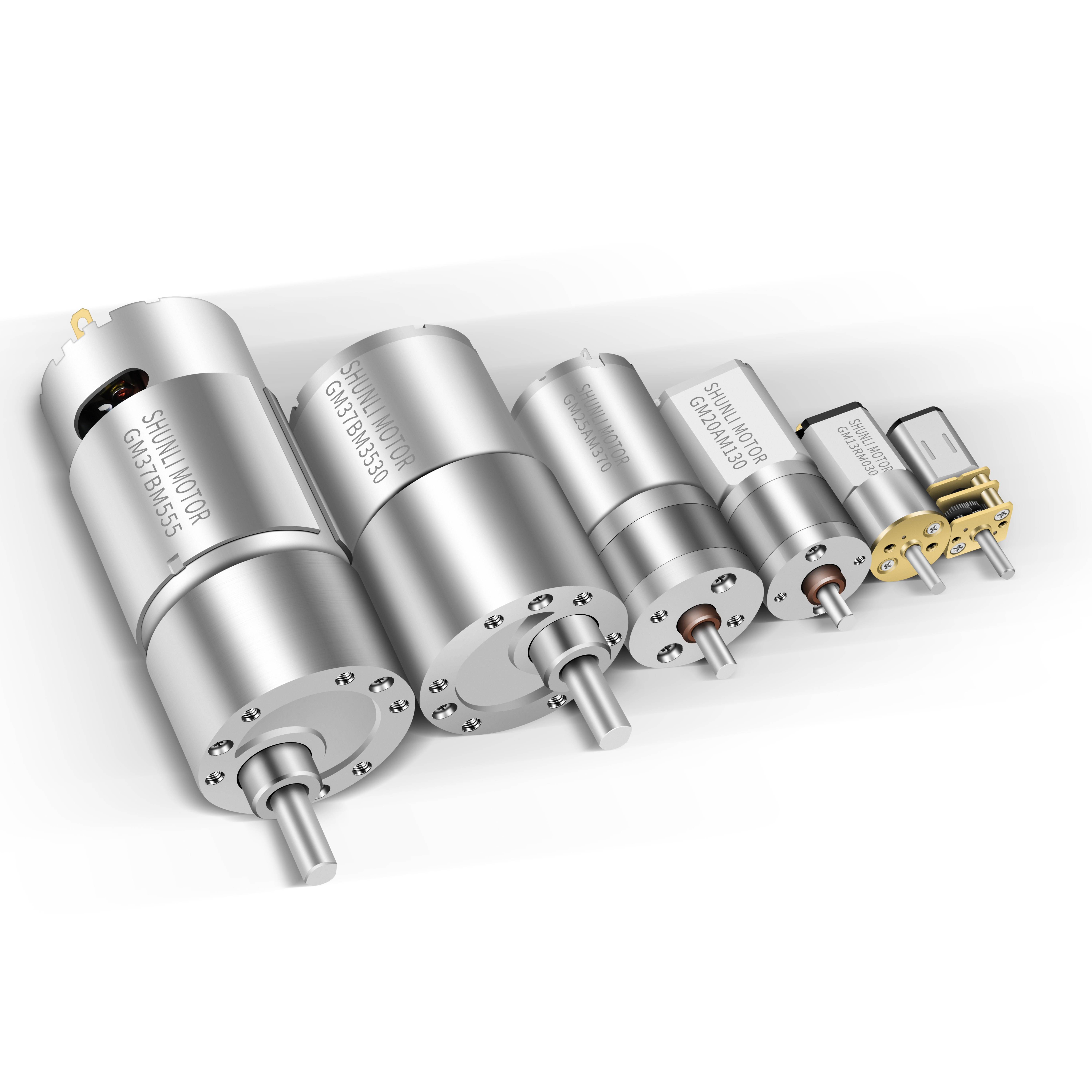

📸 Product Gallery
Motor View 1 Motor View 2 Motor View 3 Motor View 4 Motor View 5 Motor View 6
❓ Frequently Asked Questions
Are you a trading company or manufacturer?
We are a factory. We specialize in micro DC motors and DC gear motors for more than 14 years.
What is the payment term for a new customer?
We can draw up an Assurance Order Online for our new customers, which can be paid online with Master Card, Visa, etc. Customers can also pay with PayPal or TT, etc.
Can you customize the motor if I can't find a suitable one?
Yes, we can customize a suitable motor according to our customer's specific requirements.
Do you have certificates for the motors?
Yes, we have CE, FCC, ISO, etc. If you have other certificate requirements, we can apply for them for you.
How is your Quality Control handled?
We have professional checking staff on every production line process. After finishing the motor, we use specialized machinery for testing, including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise testers.
What customization options are available?
Transmission dimensions and specific motor parameters can be fully customized to meet your application needs.
