Micro Speed Dc 6v 12v Reduction Gearbox 12mm Electric Mini Dc Geared Motor
Micro Speed Dc 6v 12v Reduction Gearbox 12mm Electric Mini Dc Geared Motor
Micro Speed Dc 6v 12v Reduction Gearbox 12mm Electric Mini Dc Geared Motor
Micro Speed Dc 6v 12v Reduction Gearbox 12mm Electric Mini Dc Geared Motor
Micro Speed Dc 6v 12v Reduction Gearbox 12mm Electric Mini Dc Geared Motor
1 / 5
Micro Speed Dc 6v 12v Reduction Gearbox 12mm Electric Mini Dc Geared Motor
Micro Speed Dc 6v 12v Reduction Gearbox 12mm Electric Mini Dc Geared Motor
Micro Speed Dc 6v 12v Reduction Gearbox 12mm Electric Mini Dc Geared Motor
Micro Speed Dc 6v 12v Reduction Gearbox 12mm Electric Mini Dc Geared Motor
Micro Speed Dc 6v 12v Reduction Gearbox 12mm Electric Mini Dc Geared Motor

Micro Speed Dc 6v 12v Reduction Gearbox 12mm Electric Mini Dc Geared Motor

Send Inquiry

Product Description

Product Header

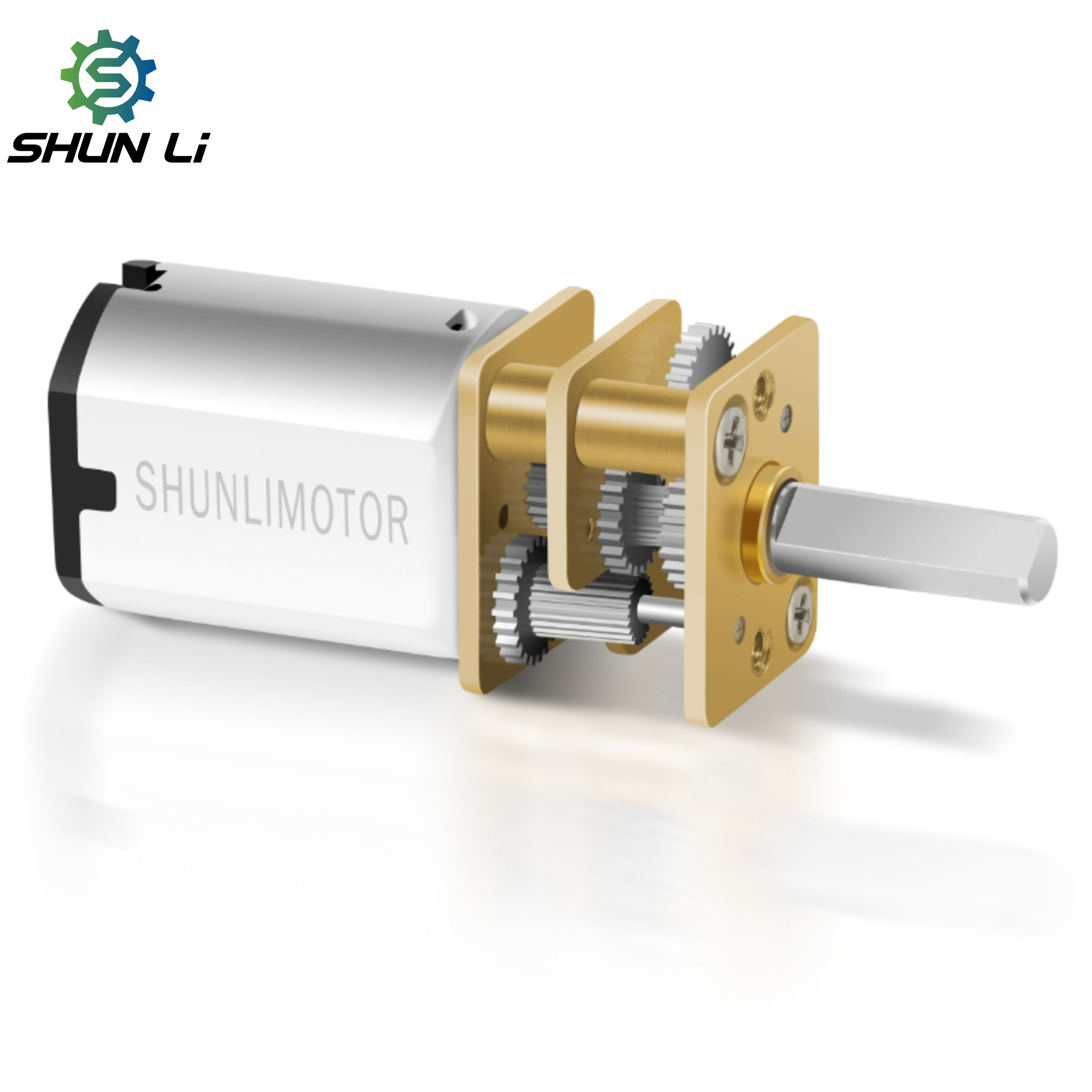

Micro Gear Motor
Product Specifications
Product Model GM12AMN10/N20/N30
Gearbox Length 9mm-12.1mm
Speed 55RPM-2500RPM
Voltage 4.6V/4.5V/6V
Torque 5.5 N.m/2.8 N.m/4.0 N.m
Support customization The Transmission Dimensions And Motor Parameters Can Be Customized

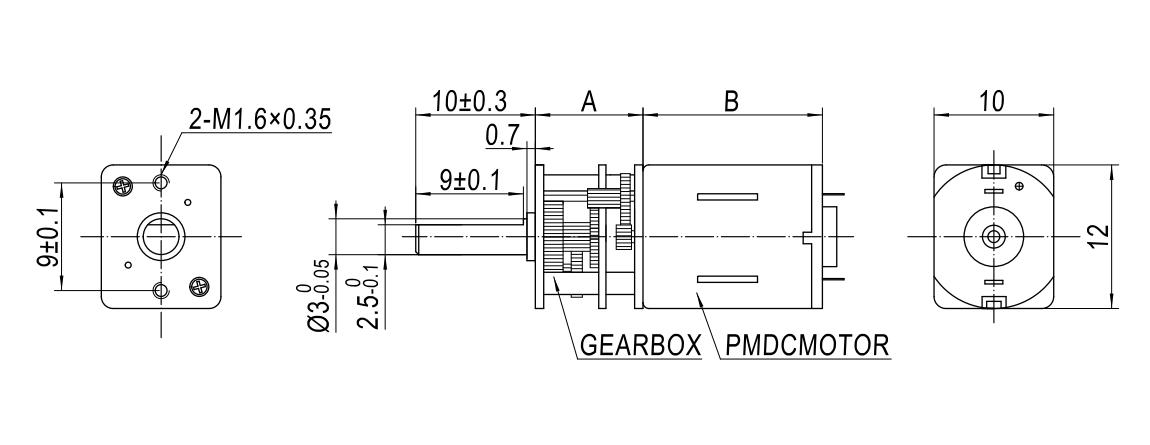

Technical Drawings & Dimensions

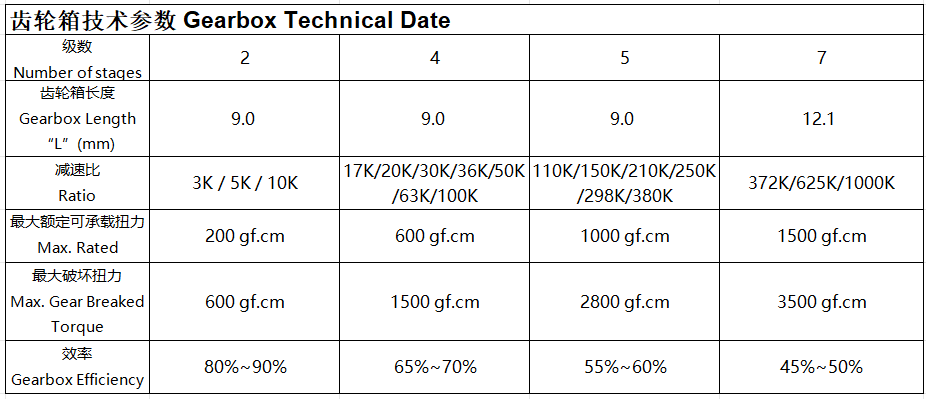

Technical Drawing 1 Technical Drawing 2
Product Gallery & Details
Motor View 1 Motor View 2 Motor View 3 Motor View 4 Motor View 5 Motor View 6
Frequently Asked Questions
Are you a trading company or a manufacturer?
We're a factory. We specialize in micro DC motors and DC gear motors with over 14 years of industry experience.
What are the payment terms for new customers?
We offer flexible payment options including Online Assurance Orders (MasterCard, Visa), PayPal, and TT (Telegraphic Transfer).
Can you customize a motor if I can't find a suitable one on your list?
Yes, we provide full customization services. We can design and manufacture a motor according to your specific technical requirements.
Do your motors have official certifications?
Yes, our motors are certified with CE, FCC, ISO, and other standards. We can also apply for additional certifications if required.
How do you ensure quality control during production?
We have professional inspection staff at every stage. Our testing equipment includes Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, and Noise Testers to ensure performance and durability.
What is your typical lead time for orders?
Lead times depend on the order volume and customization requirements. Standard samples are typically processed quickly, while bulk orders follow a scheduled production timeline to ensure quality.
