775 Dc Motor for Power Tools Low Price Motor 12v 24v Dc Gear Motor

Send Inquiry

Product Description

Product Description

775 DC Motor for Power Tools Low Price Motor 12V 24V DC Motor

Product Details

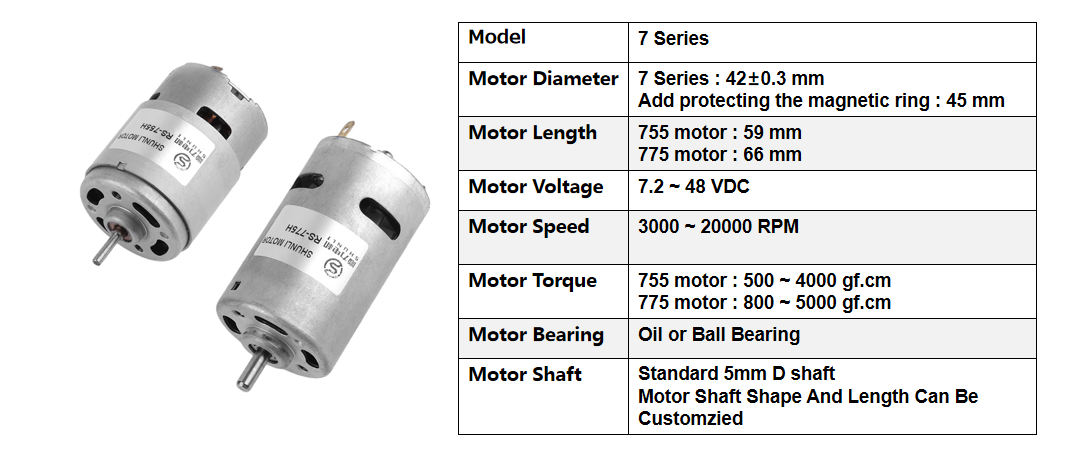

Motor Customized Specification available.

Reference Drawing

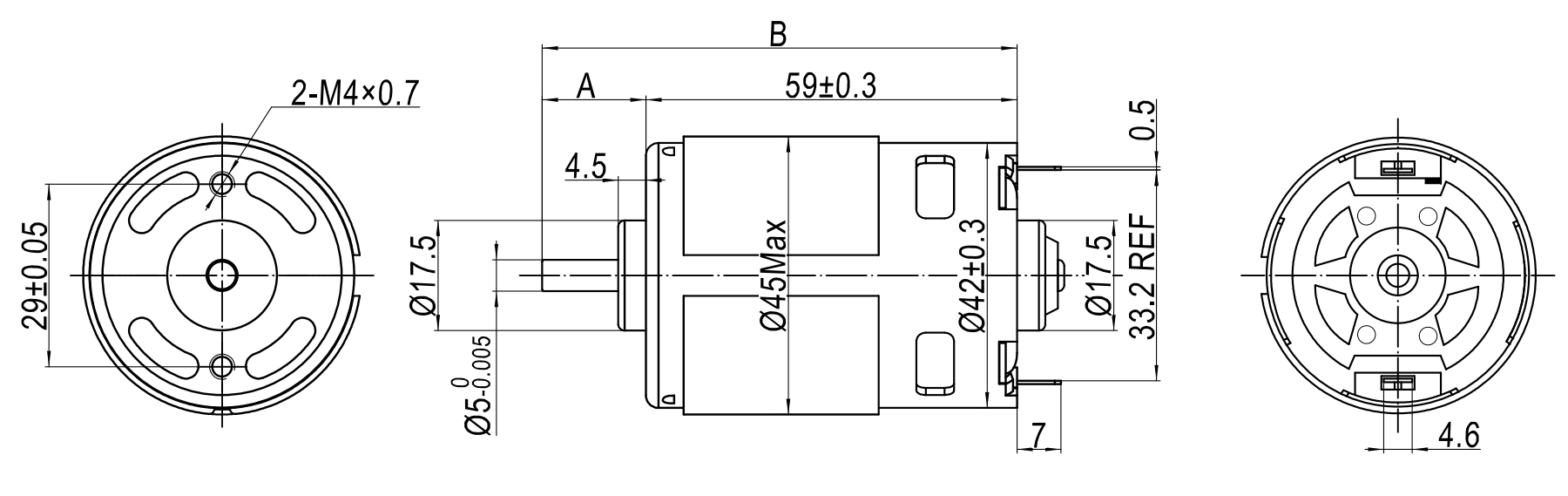

RS-755H Technical Drawing

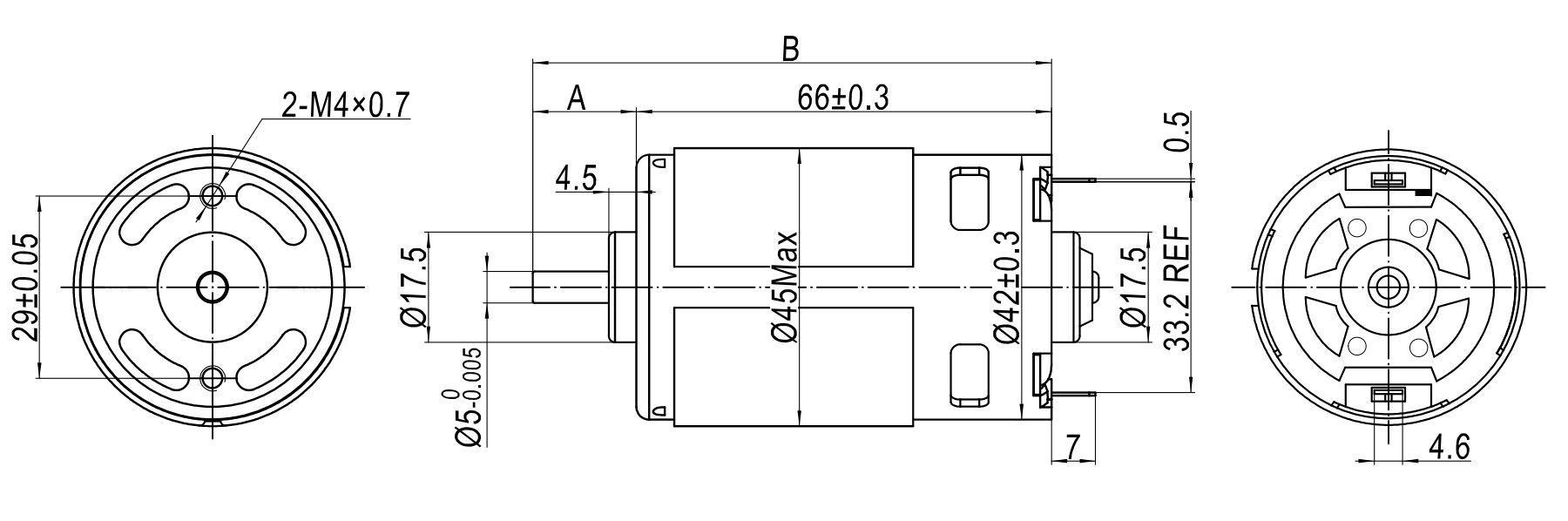

RS-775H Technical Drawing

Note: The length of the shaft can be customized.

PMDC MOTOR Technical Data

Model		Rated Voltage (V)		No-Load		Rated				Stall
Model		Range	Nominal	Speed (RPM)	Current (A)	Speed (RPM)	Current (A)	Torque (mN.m)	Power (W)	Current (A)	Torque (mN.m)
RS-770H	8523R	6.0~12.0	12 VDC	15000	2.2	13177	15.91	81	111.8	115	666.9
RS-775H	25110R	6.0~24.0	24 VDC	3478	0.15	2925	0.75	44.4	13.35	4.07	245.7

Application & Product Showcase

Frequently Asked Questions

1. Are you a trading company or a manufacturer? We are a professional factory specializing in micro DC motors and DC gear motors for more than 14 years.

2. What are the payment terms for new customers? Orders can be processed through online assurance platforms supporting Master Card, Visa, etc. Payments via PayPal and TT are also accepted.

3. Can you customize a motor if I cannot find a suitable one on the website? Yes, we can customize a suitable motor according to specific requirements, including shaft length and technical specifications.

4. Do the motors come with certifications? Yes, our motors carry CE, FCC, and ISO certifications. Other specific certificates can be applied for upon request.

5. How is quality control managed? We utilize professional checking staff at every production line process. Finished motors undergo rigorous testing using equipment such as Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, and Life Testers.

6. What is the typical application for the 775 DC motor? The 775 DC motor is widely used in power tools, industrial equipment, and various 12V-24V high-torque applications.

Product Detail

775 Dc Motor for Power Tools Low Price Motor 12v 24v Dc Gear Motor

Product Description

775 DC Motor for Power Tools Low Price Motor 12V 24V DC Motor

RS-755H Technical Drawing

RS-775H Technical Drawing
