Customized 6v/12v/24v 22mm Planetary Gearbox Plus Permanent Magnet DC Motor China Supplier
Customized 6v/12v/24v 22mm Planetary Gearbox Plus Permanent Magnet DC Motor China Supplier
Customized 6v/12v/24v 22mm Planetary Gearbox Plus Permanent Magnet DC Motor China Supplier
Customized 6v/12v/24v 22mm Planetary Gearbox Plus Permanent Magnet DC Motor China Supplier
Customized 6v/12v/24v 22mm Planetary Gearbox Plus Permanent Magnet DC Motor China Supplier
1 / 5
Customized 6v/12v/24v 22mm Planetary Gearbox Plus Permanent Magnet DC Motor China Supplier
Customized 6v/12v/24v 22mm Planetary Gearbox Plus Permanent Magnet DC Motor China Supplier
Customized 6v/12v/24v 22mm Planetary Gearbox Plus Permanent Magnet DC Motor China Supplier
Customized 6v/12v/24v 22mm Planetary Gearbox Plus Permanent Magnet DC Motor China Supplier
Customized 6v/12v/24v 22mm Planetary Gearbox Plus Permanent Magnet DC Motor China Supplier

Customized 6v/12v/24v 22mm Planetary Gearbox Plus Permanent Magnet DC Motor China Supplier

Send Inquiry

Product Description

Product Banner
◈ Specifications

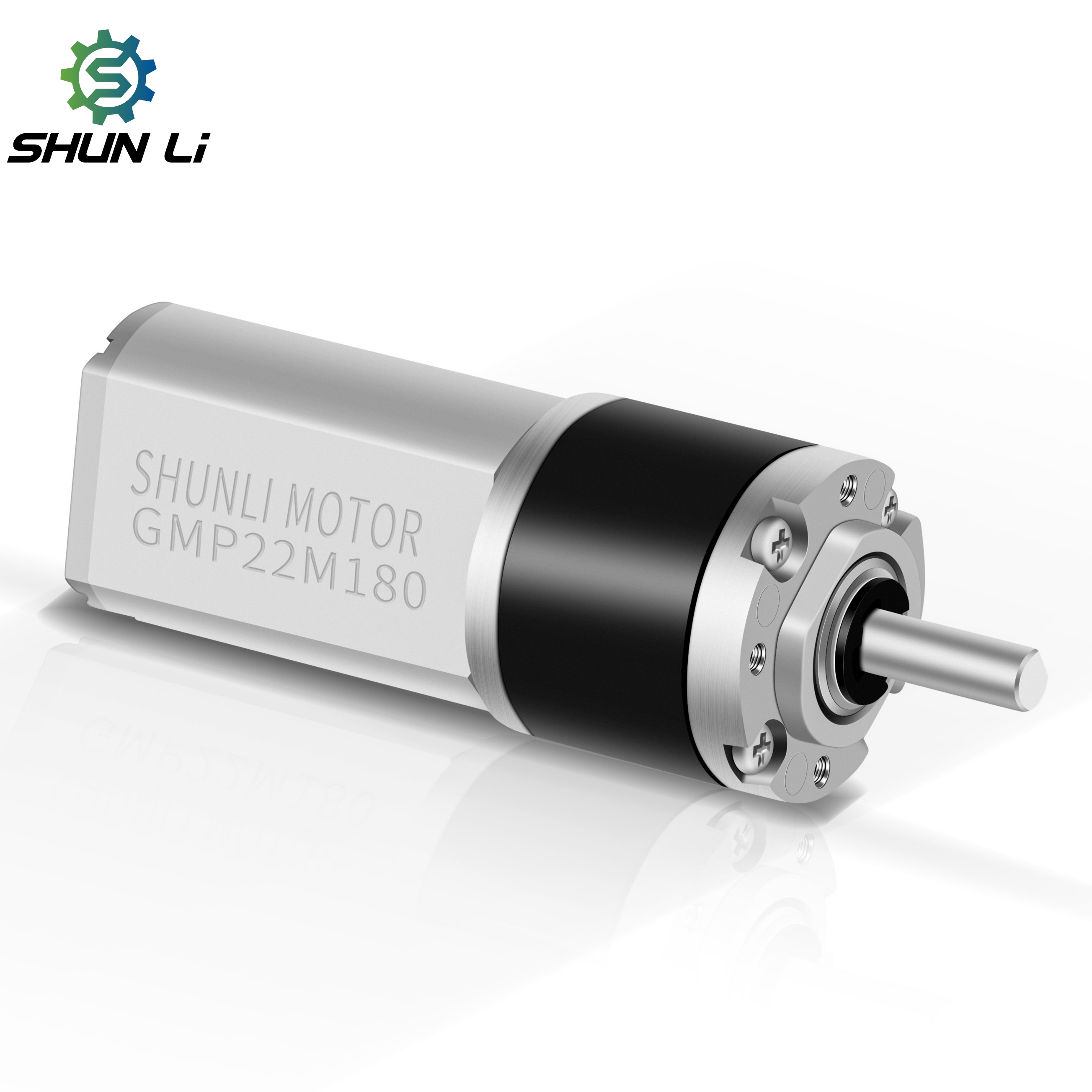

DC Gear Motor
Product Model GMP22M130/180
Gearbox Length 13.3~27.3MM
Speed 30RPM-138RPM
Voltage 6V/5V
Torque 0.095 N.m / 0.32 N.m
Customization Dimensions and parameters can be fully customized

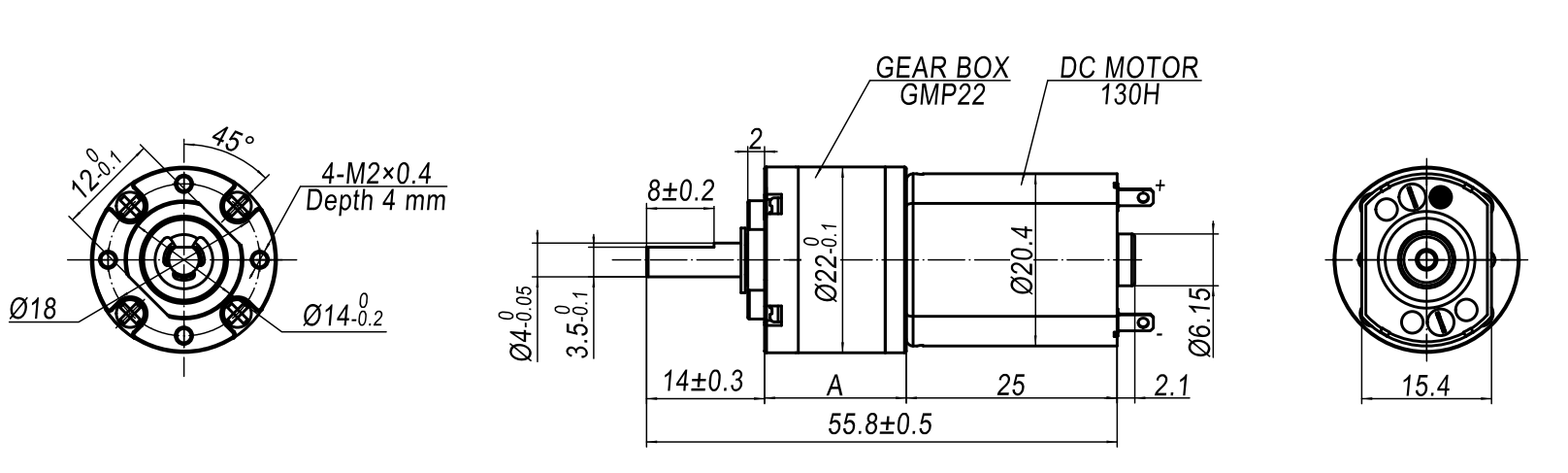

◈ Technical Dimensions

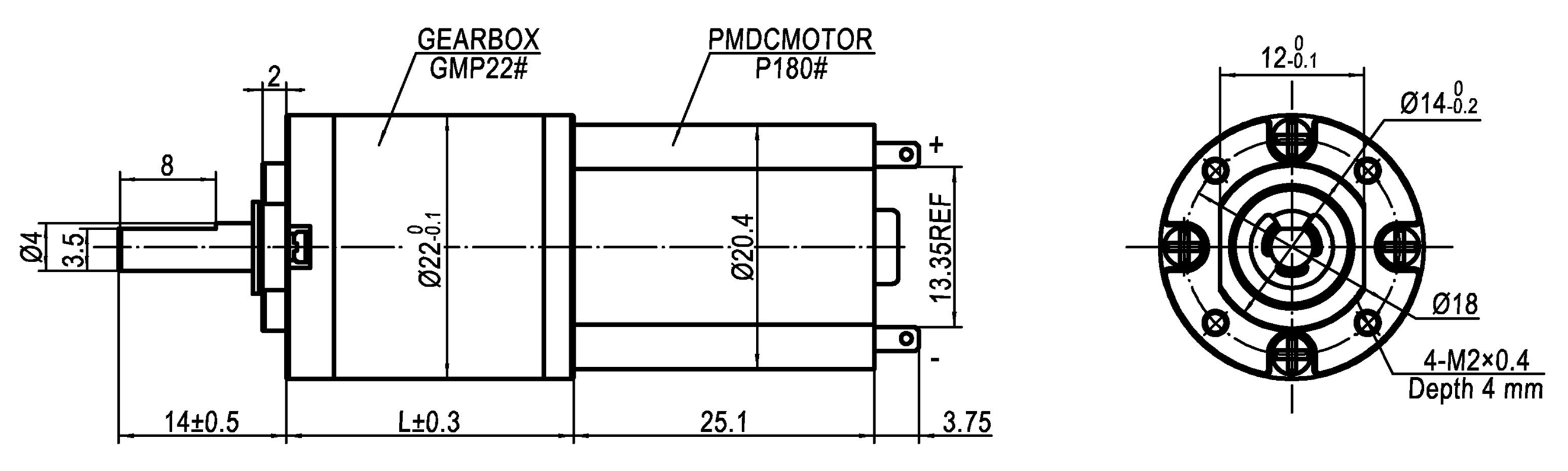

Technical Drawing
◈ Performance Curve

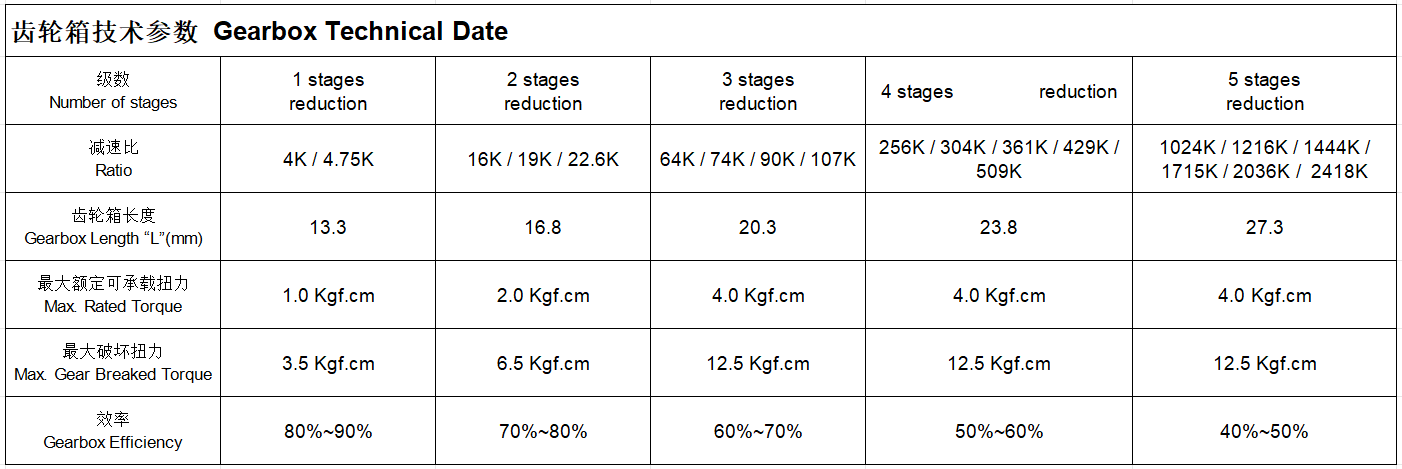

Performance Curve

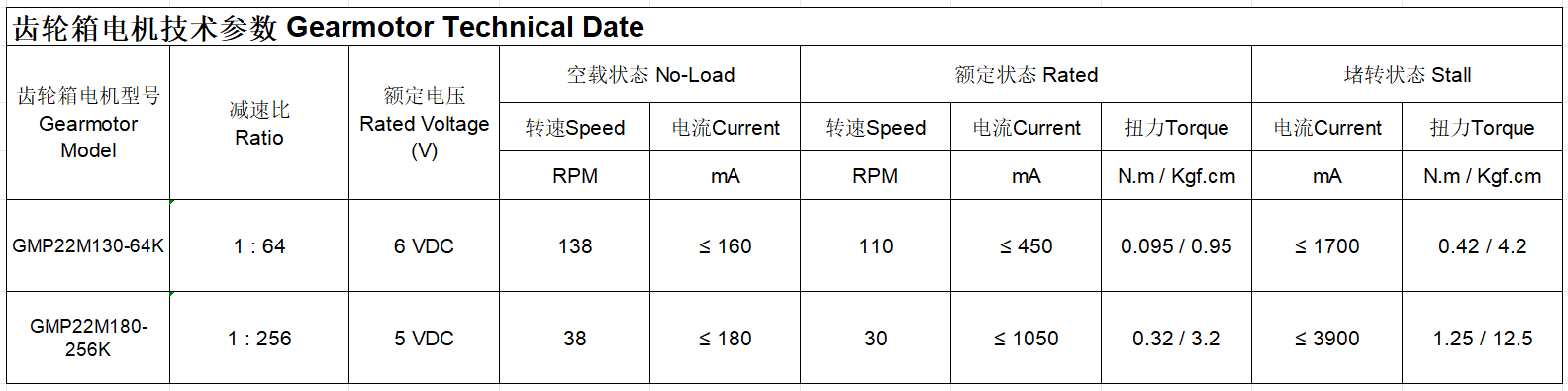

Data Chart

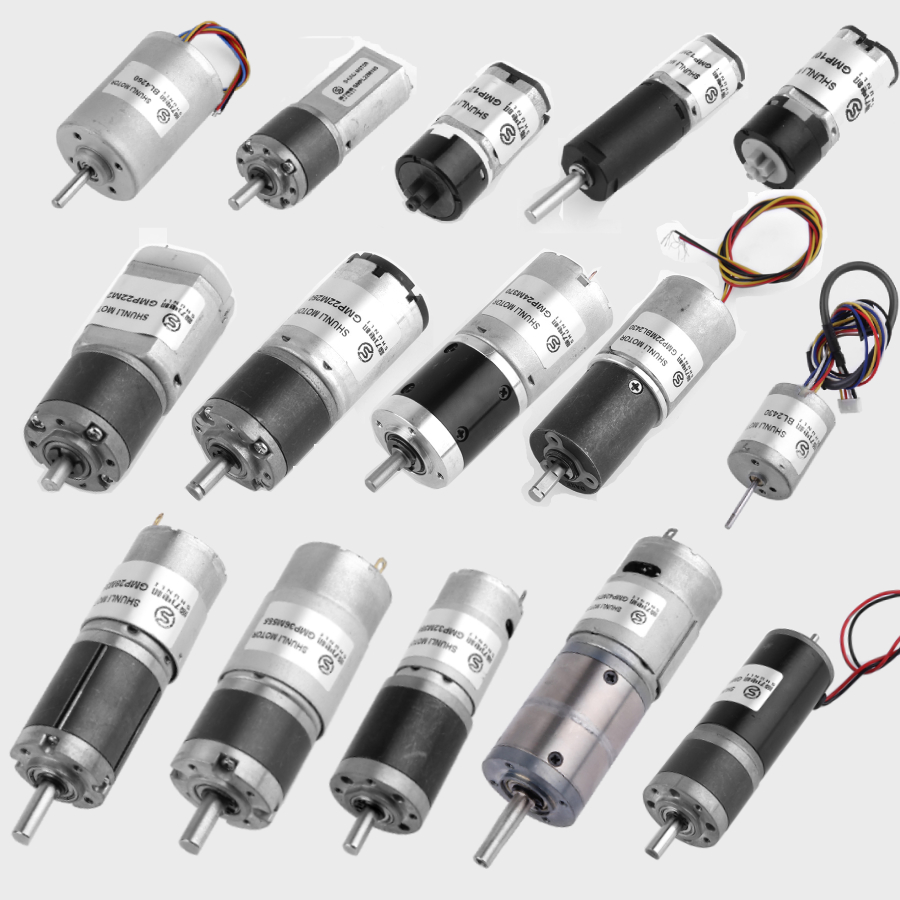

◈ Product Gallery
Motor View 1
Motor View 2
Motor View 3
Motor View 4
Motor View 5
Motor View 6
◈ Frequently Asked Questions
Are you a trading company or manufacturer?
We are a factory specializing in micro DC motors and DC gear motors with over 14 years of industry experience.
What are the payment terms for new customers?
We offer secure online assurance orders which support MasterCard, Visa, etc. We also accept PayPal and T/T transfers.
Can you customize a motor if I can't find a suitable one on the website?
Yes, we provide full customization services to develop a motor that meets your specific technical requirements.
Do you hold certifications for your motors?
Yes, our products are certified with CE, FCC, ISO, and other standards. We can also apply for specific certifications if required.
How do you ensure quality control?
We employ professional inspection staff on every production line and utilize advanced testing equipment, including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, and Noise Testers.
What is the typical lead time for customized motor samples?
Lead times vary depending on the complexity of the customization, but we strive to provide samples efficiently to meet your project timeline.
