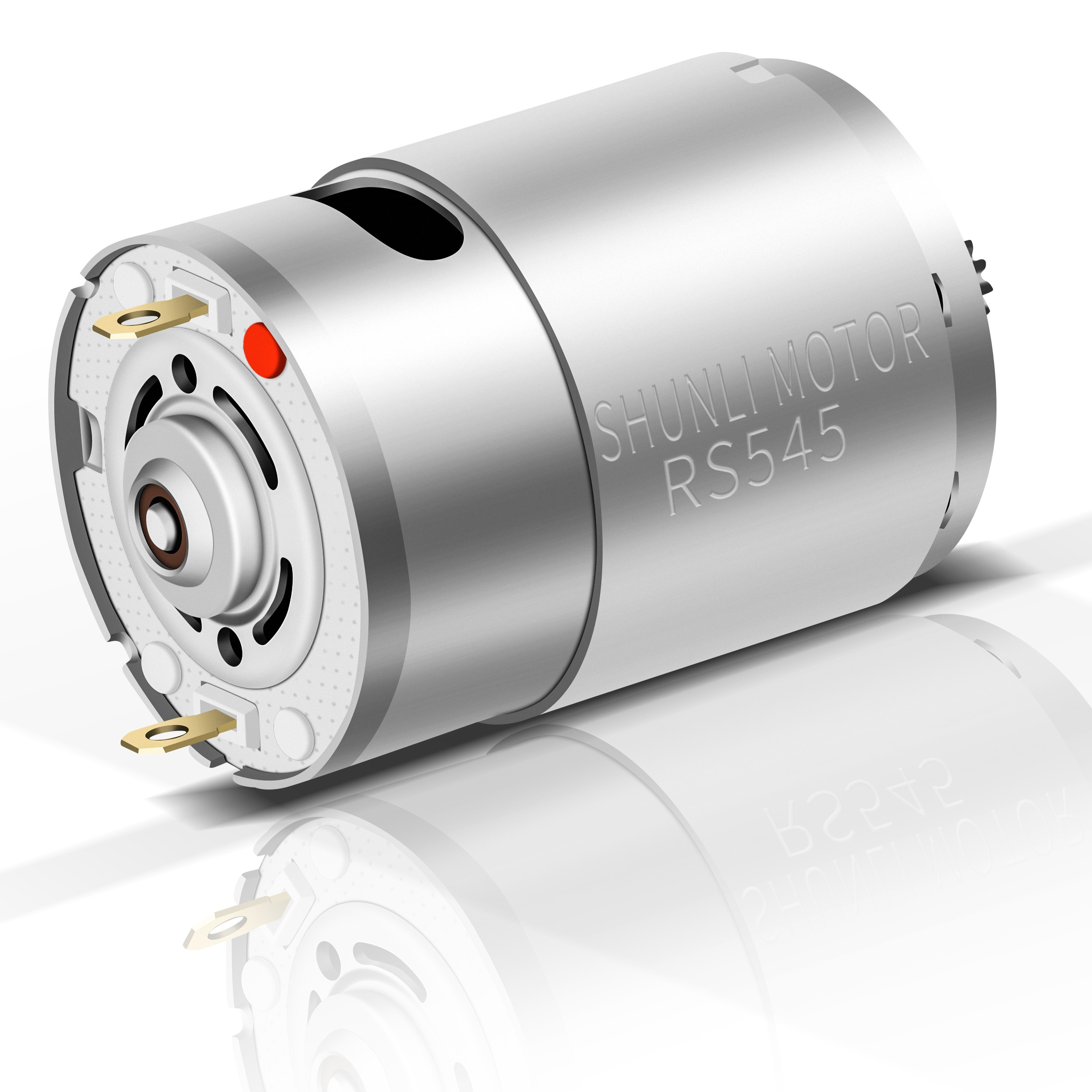

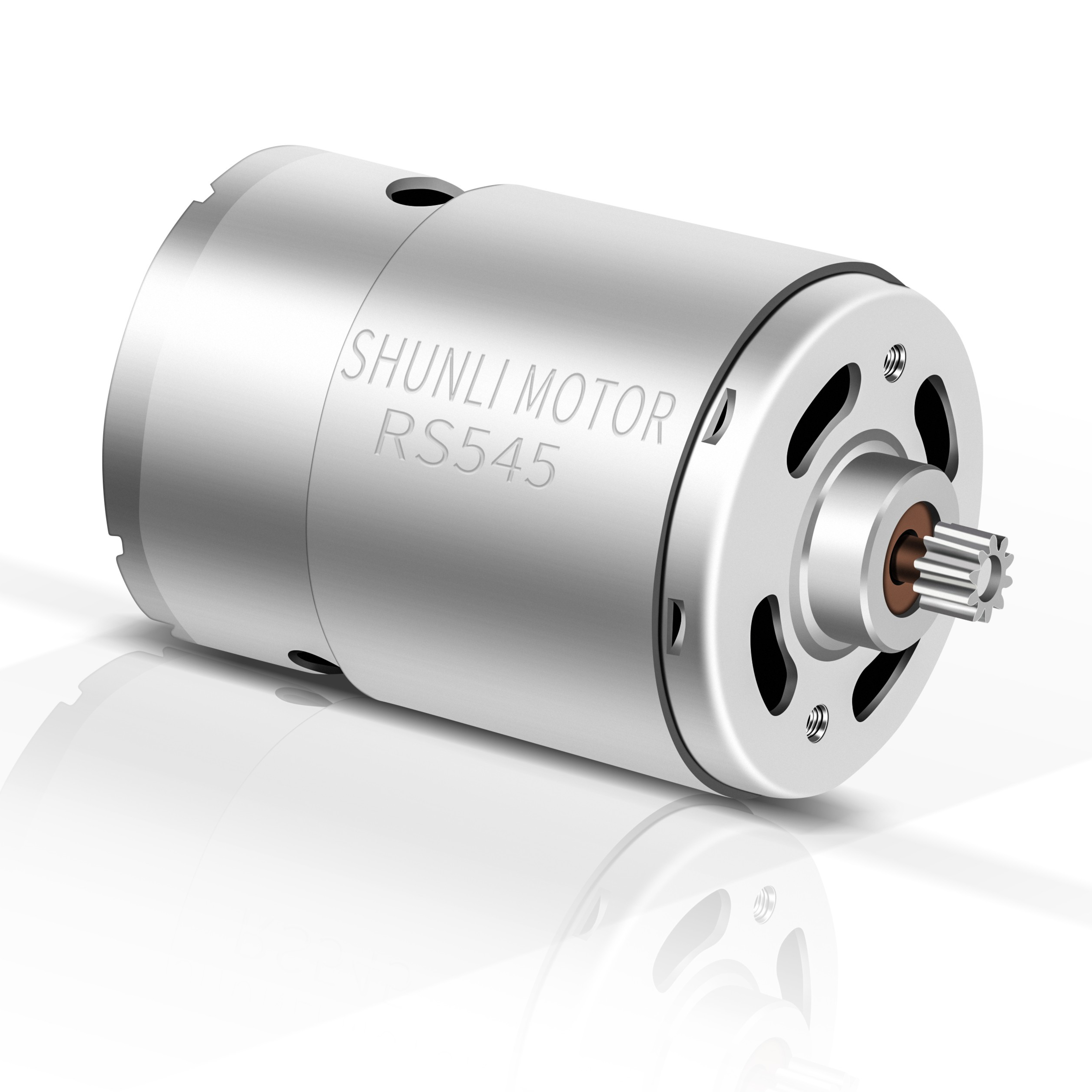

6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 15000RPM

1 / 5

6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 15000RPM

Send Inquiry

Product Description

Application

6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 30000RPM

Product Details

Motor Customized Specification Available

PMDC MOTOR Technical Data
Model		Rated Voltage(V)		No-Load		Rated
		Operating Range	Nominal	Speed	Current	Speed	Current	Torque	Power
		Operating Range	Nominal	RPM	A	RPM	A	mN.m / gf.cm	W
RS-550H	23128R	6.0~24.0	24VDC	4500	0.1	3932	0.39	25.7/262	10.6
RS-550H	6034	6.0~12.0	12VDC	16000	1.12	13613	4.96	25.6/261.3	40.36
RS-555H	3540	6.0~12.0	12VDC	7800	0.3	6708	1.84	21.9/223.4	15.35
RS-555H	23100	6.0~24.0	24VDC	7000	0.14	6004	0.77	19.2/195.8	12.09

RS - 545 A Series Performance

Frequently Asked Questions

What is the operating voltage range for these motors?

The RS-545, RS-550, and RS-555 motors support a wide operating range, typically from 6.0V up to 24.0V DC, depending on the specific model and winding.

What is the maximum RPM available?

These high-speed DC motors can reach up to 30,000 RPM, making them ideal for applications requiring high-velocity rotation.

Can I request customized motor specifications?

Yes, customized technical specifications including voltage, speed, torque, and shaft dimensions can be provided to meet your specific project requirements.

What are the primary applications for the RS series motors?

These motors are commonly used in power tools, household appliances, automotive components, and industrial automation equipment where high RPM and reliability are essential.

What does PMDC stand for in the technical data?

PMDC stands for Permanent Magnet Direct Current. These motors use permanent magnets to create the magnetic field required for operation, offering high efficiency and a compact design.

How do I choose between the RS-550H and RS-555H models?

Selection depends on your power, torque, and size requirements. The RS-550H is often chosen for high-speed power tools, while the RS-555H offers different torque-to-speed ratios suitable for varied industrial tasks.

Product Detail

6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 15000RPM

Product Description

6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 30000RPM

Frequently Asked Questions
