6v 12v 24v Micro Motor Electric Car Motor Micro Dc Motor

1 / 5

6v 12v 24v Micro Motor Electric Car Motor Micro Dc Motor

Send Inquiry

Product Description

Product Description

6v 12v 24v Micro Motor Electric Car Motor Micro DC Motor

Product Details

Motor Customized Specification Available.

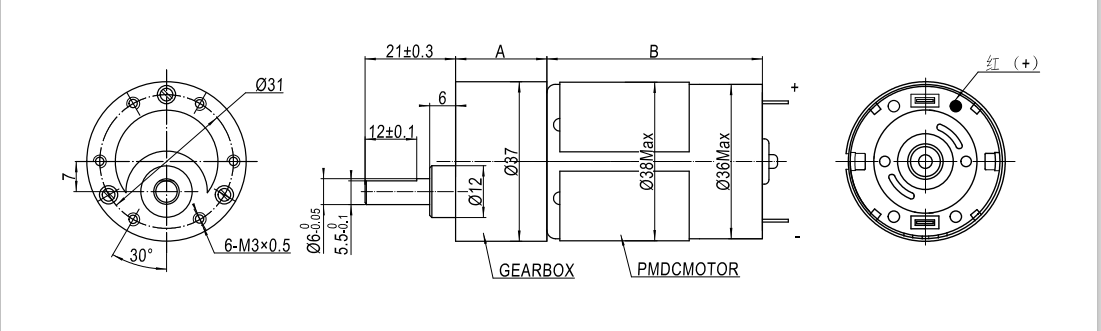

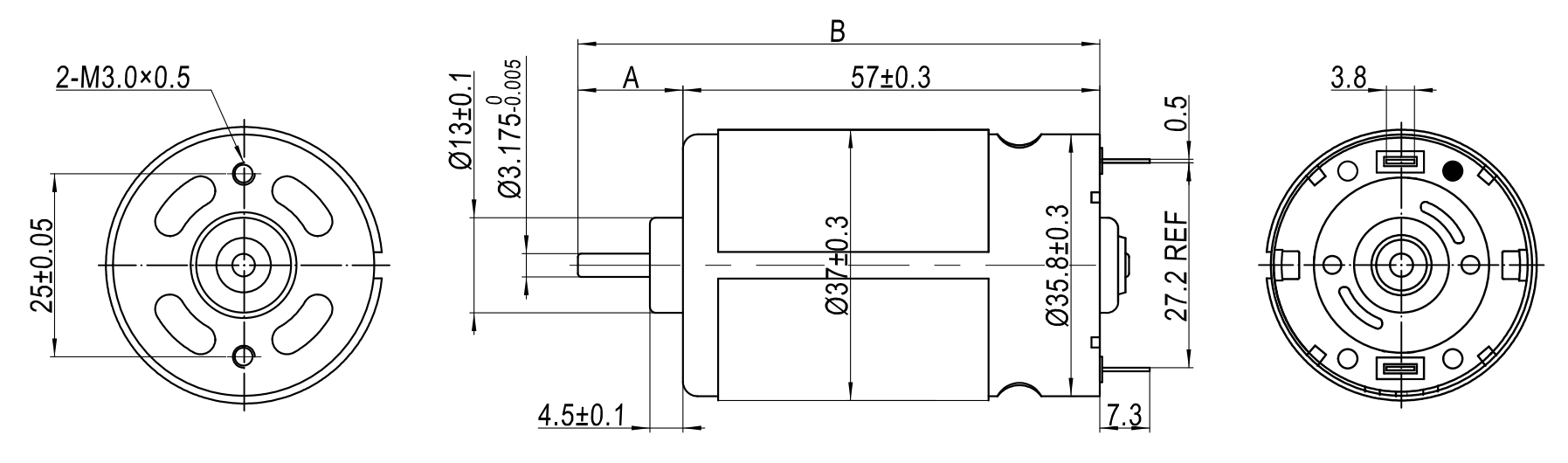

Reference Drawing

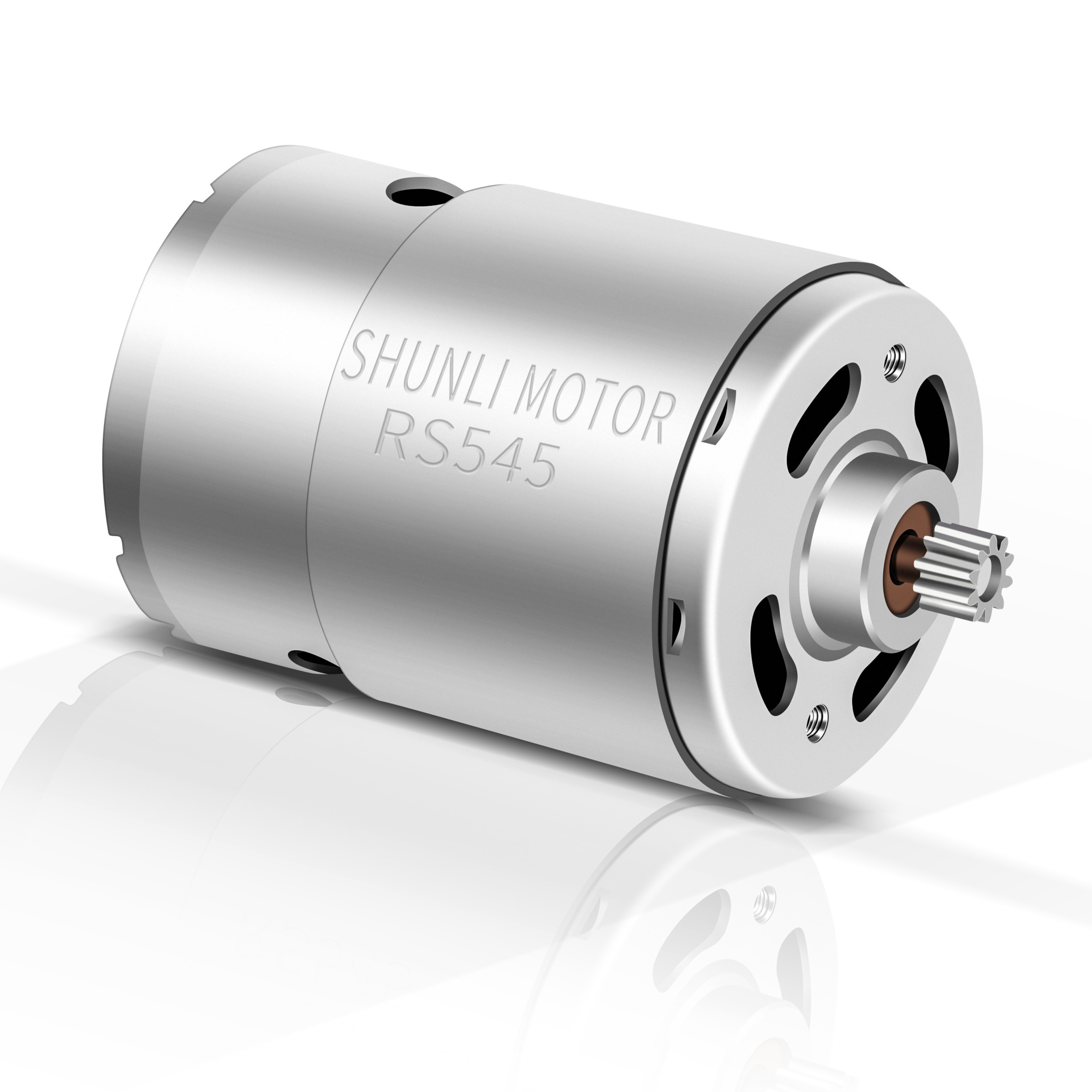

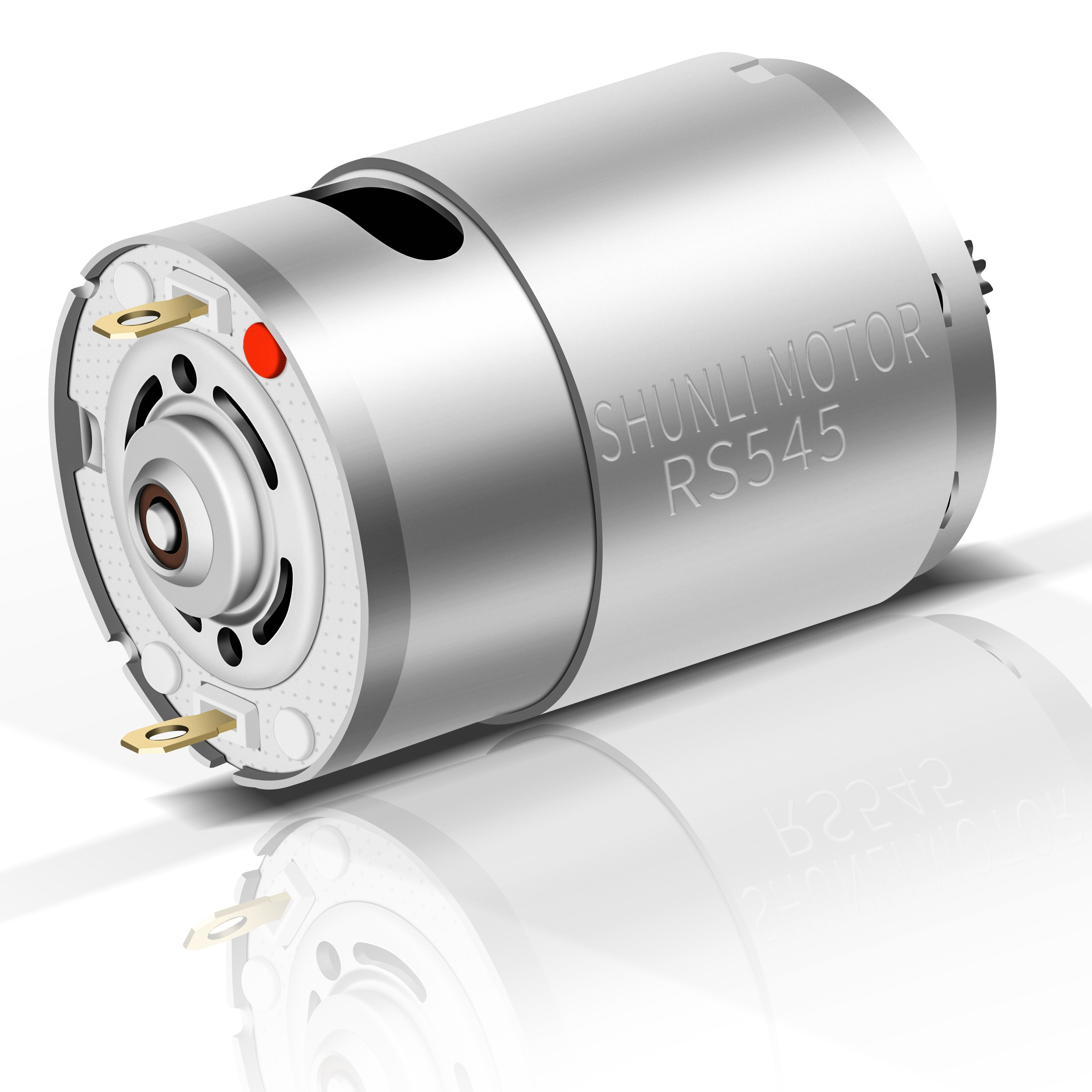

1 RS - 545 A

2 RS - 555 A

3 RS - 575 A

The length of shaft can be customized.

Reference Datasheet

PMDC MOTOR Technical Data
Model		Rated Voltage(V)		No-Load		Rated				Stall
Model		Operating Range	Nominal	Speed (RPM)	Current (A)	Speed (RPM)	Current (A)	Torque (mN.m)	Power (W)	Current (A)	Torque (mN.m)
RS-550H	23128R	6.0~24.0	24VDC	4500	0.1	3932	0.39	25.7	10.6	4.8	204
RS-550H	6034	6.0~12.0	12VDC	16000	1.12	13613	4.96	25.6	40.36	48.89	281.4
RS-555H	3540	6.0~12.0	12VDC	7800	0.3	6708	1.84	21.9	15.35	11.31	156
RS-555H	23100	6.0~24.0	24VDC	7000	0.14	6004	0.77	19.2	12.09	4.2	124.5

Recommend Products

Frequently Asked Questions

What voltage options are available for these micro motors?

These micro motors are available in standard 6V, 12V, and 24V DC configurations to suit various power requirements.

Can the motor shaft be customized for specific applications?

Yes, the length and dimensions of the shaft can be customized according to your specific project requirements.

What are the main differences between the RS-550 and RS-555 models?

The models differ in their technical specifications including operating speed (RPM), torque, and power output. Please refer to the technical datasheet for precise comparisons.

Are these motors suitable for electric car applications?

Absolutely, these micro DC motors are specifically designed for use in electric cars, micro appliances, and other precision motion control devices.

How can I determine the right motor model for my device?

You should match the rated voltage, speed (RPM), and torque requirements of your device with the values provided in our Reference Datasheet.

Is technical support available for customized motor specifications?

Technical parameters and performance data can be adjusted to meet specific industrial or consumer electronics needs.

Product Detail

6v 12v 24v Micro Motor Electric Car Motor Micro Dc Motor

Product Description

6v 12v 24v Micro Motor Electric Car Motor Micro DC Motor
