Shunli Custom 12v 6000rpm Dc Motor for Hair Dryer /toy Car Electric Dc Motor

1 / 5

Shunli Custom 12v 6000rpm Dc Motor for Hair Dryer /toy Car Electric Dc Motor

Send Inquiry

Product Description

📦 Product Description

12v 6000rpm DC motor for hair dryer / toy car / electric DC motor

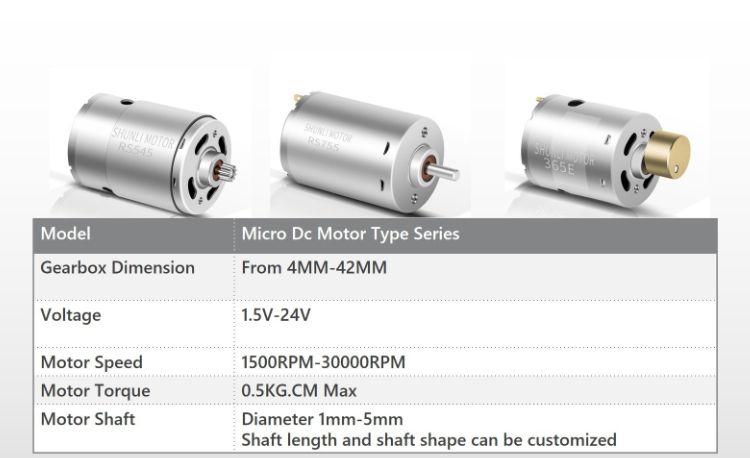

🔍 Product Details

Motor Customized Specification available upon request.

📏 Reference Drawing

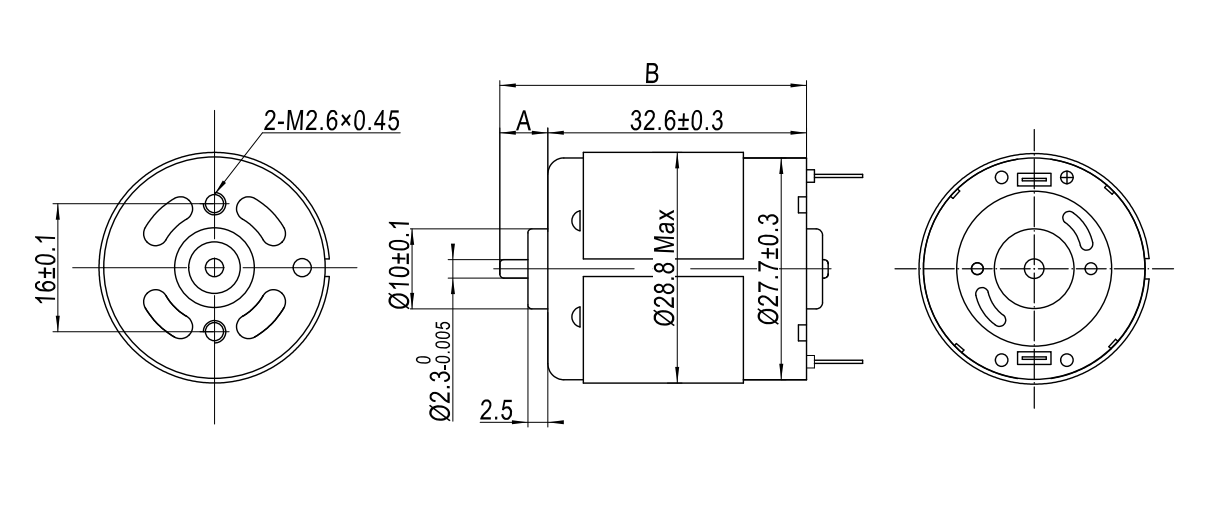

------ RS - 365

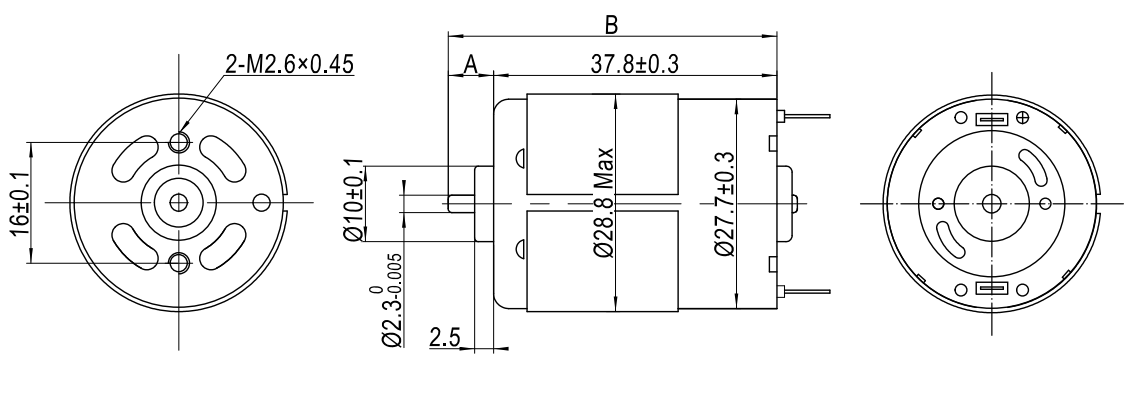

------ RS - 385

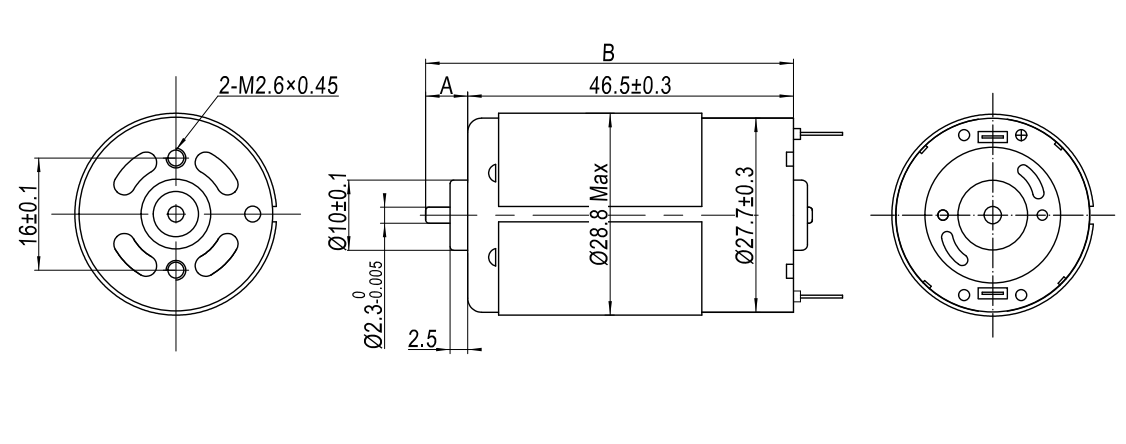

------ RS - 395

⚙️ The length of shaft can be customized according to requirements.

📊 Reference Datasheet

PMDC MOTOR Technical Data
Model		Rated Voltage (V)		No-Load		Rated
Model		Operating Range	Nominal	Speed (RPM)	Current (A)	Speed (RPM)	Current (A)	Torque (mN.m)	Power (W)
RS-390SH	20156R	6.0~12.0	12VDC	5000	0.08	4243	0.33	6.07	2.72
RS-390SH	2975	6.0~12.0	12VDC	12000	0.29	10165	0.33	5.75	1.31
RS-395SH	15130	6.0~12.0	12VDC	3650	0.66	2949	0.25	5.83	1.8
RS-395SH	15100R	6.0~24.0	24VDC	10300	0.07	8893	0.38	7.09	6.68

🖼️ Product Showcase

❓ Frequently Asked Questions

Q1: What is the typical operating voltage for these motors?

A1: These DC motors are primarily designed for 12V and 24V applications, with an operating range typically between 6V and 24V depending on the specific model.

Q2: Can the motor shaft be customized for specific products?

A2: Yes, the length and shape of the shaft can be fully customized to meet your specific application needs.

Q3: What are the main applications for the RS-390 and RS-395 series?

A3: These motors are widely used in hair dryers, toy cars, small household appliances, and various electric tools due to their high speed and reliable torque.

Q4: What is the maximum speed these motors can reach?

A4: Depending on the model and configuration, these motors can reach speeds up to 12,000 RPM at no-load conditions.

Q5: Do you provide detailed technical drawings for integration?

A5: Yes, reference drawings for models like RS-365, RS-385, and RS-395 are available to assist with your mechanical design and integration.

Q6: Are customized electrical specifications available?

A6: Absolutely. We can adjust parameters such as rated speed, current, and torque to align with your specific performance requirements.
