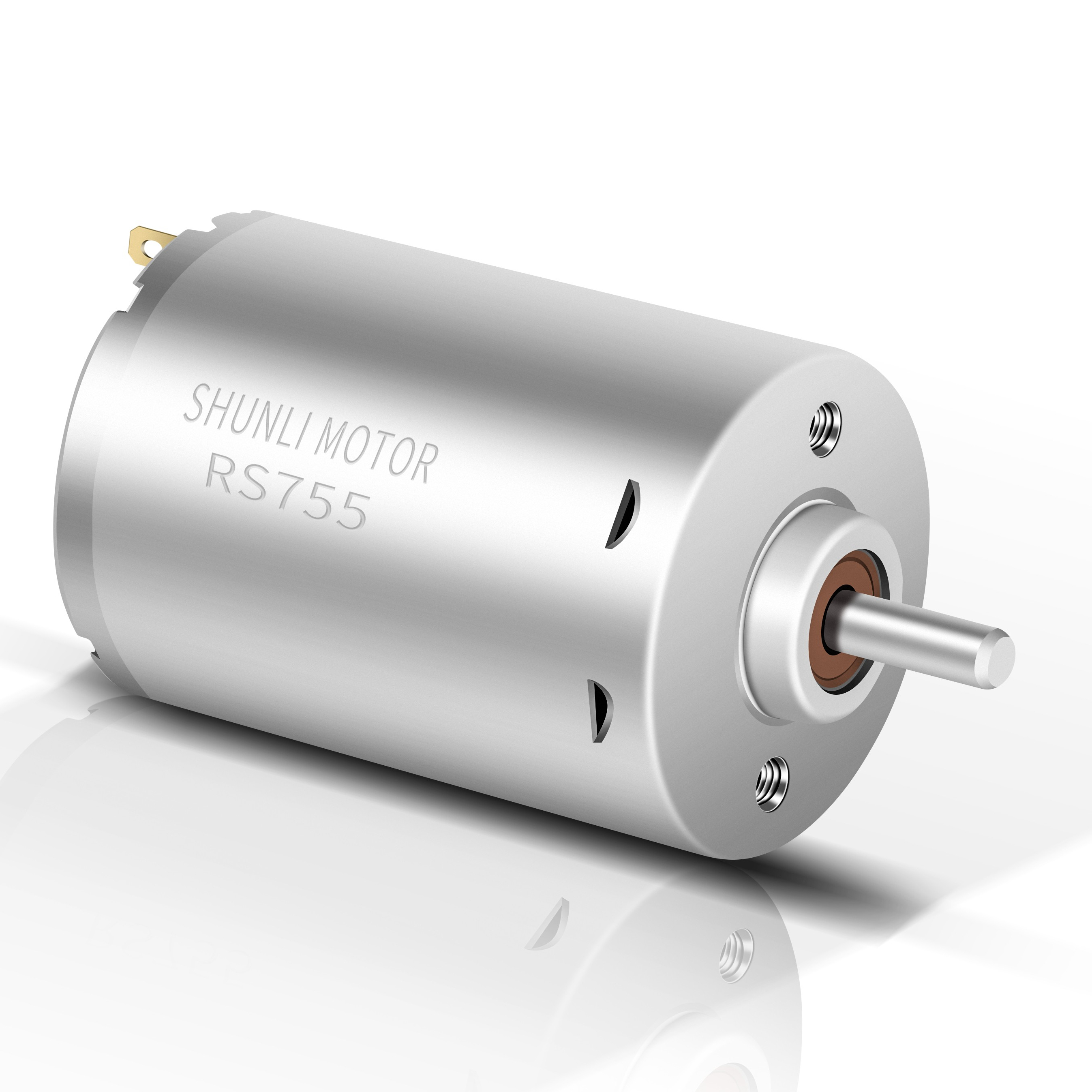

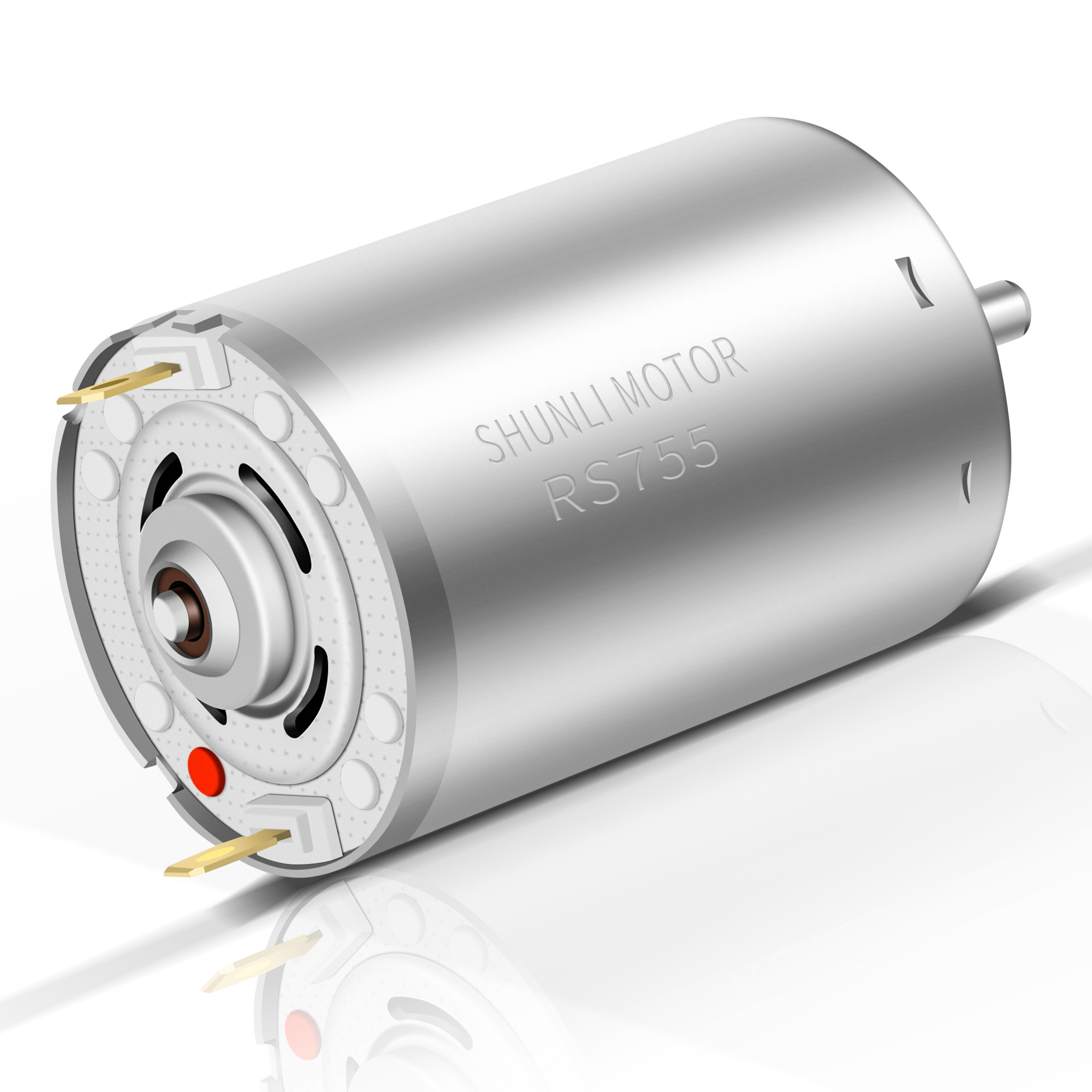

Powerfull 20000rpm rs 775 Mini High Speed 24 Volt Dc Motor

1 / 4

Powerfull 20000rpm rs 775 Mini High Speed 24 Volt Dc Motor

Send Inquiry

Product Description

Product Description

Powerful 20000rpm RS 775 Mini High Speed 24 Volt DC Motor

Product Details

Note: Motor specifications and shaft length can be fully customized based on your specific requirements.

Reference Drawing

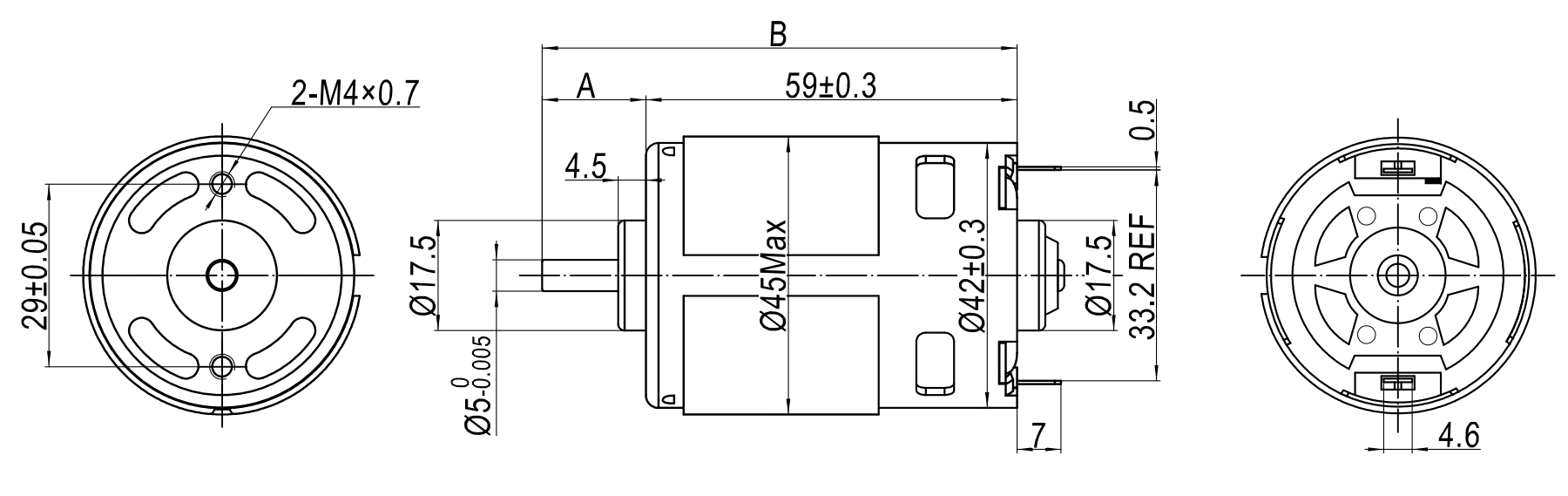

------ RS - 755 H

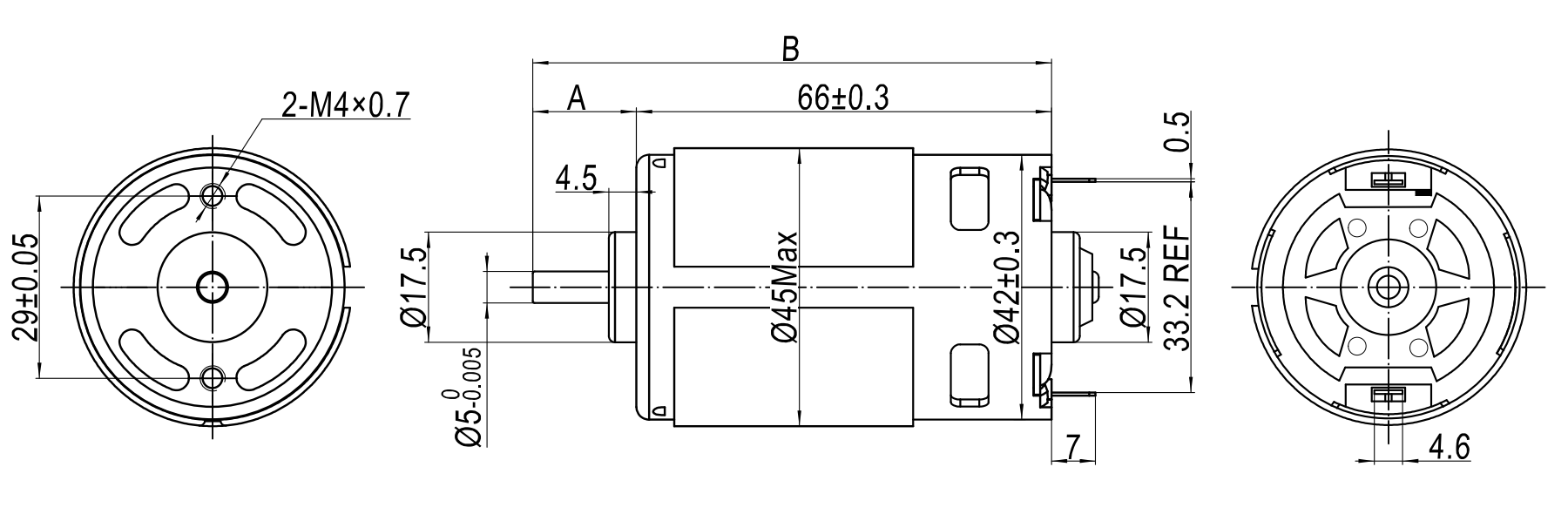

------ RS - 775 H

PMDC Motor Technical Data

Model	Rated Voltage (V)		No-Load		Rated				Stall
Model	Range	Nominal	Speed (RPM)	Current (A)	Speed (RPM)	Current (A)	Torque (mN.m)	Power (W)	Current (A)	Torque (mN.m)
RS-770H	6.0~12.0	12 VDC	15000	2.2	13177	15.91	81 / 826.2	111.8	115	666.9 / 6802
RS-775H	6.0~24.0	24 VDC	3478	0.15	2925	0.75	44.4 / 452.9	13.35	4.07	245.7 / 2506

Application Display

Quality Certifications

Frequently Asked Questions

Are you a trading company or manufacturer?

We are a professional factory specializing in micro DC motors and DC gear motors with over 14 years of experience.

What is the payment term for new customers?

We support multiple payment methods including Online Assurance Orders (Visa, Master Card), PayPal, and TT transfers.

Can you customize a motor if I can't find a suitable one?

Yes, we provide full customization services to design and manufacture motors according to your specific technical requirements.

Do your motors have international certifications?

Yes, our motors are certified with CE, FCC, and ISO standards. We can also apply for other specific certificates if needed.

How do you ensure product quality?

We implement strict quality control at every production stage using advanced testing equipment such as Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, and Life Testers.

Is technical support available for motor selection?

Yes, our engineering team can assist you in selecting the right motor parameters and providing technical drawings for your project.

Product Detail

Powerfull 20000rpm rs 775 Mini High Speed 24 Volt Dc Motor

Product Description

Powerful 20000rpm RS 775 Mini High Speed 24 Volt DC Motor
