Shunli Mini DC Gear Motors RS-555 6V 12V 24V 15000 RPM Affordable Price Reliable Quality for Global B2B Buyers

⚙️ Product Description

6V 12V 24V 15000 RPM DC Motor RS-555

Product Details Motor Details

Motor Customized Specification Available

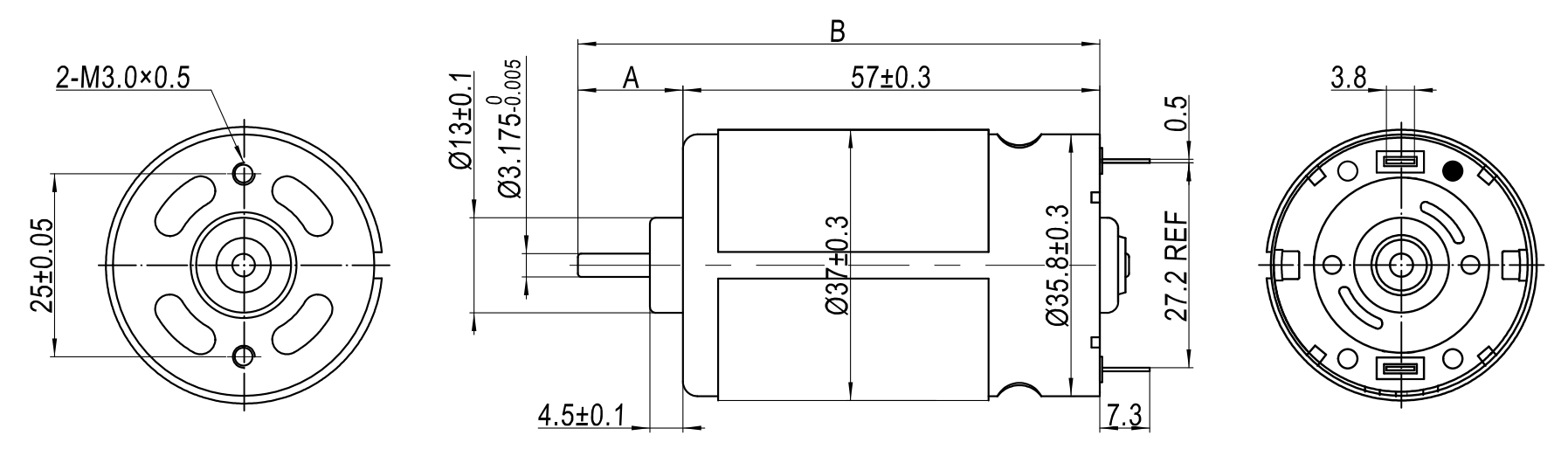

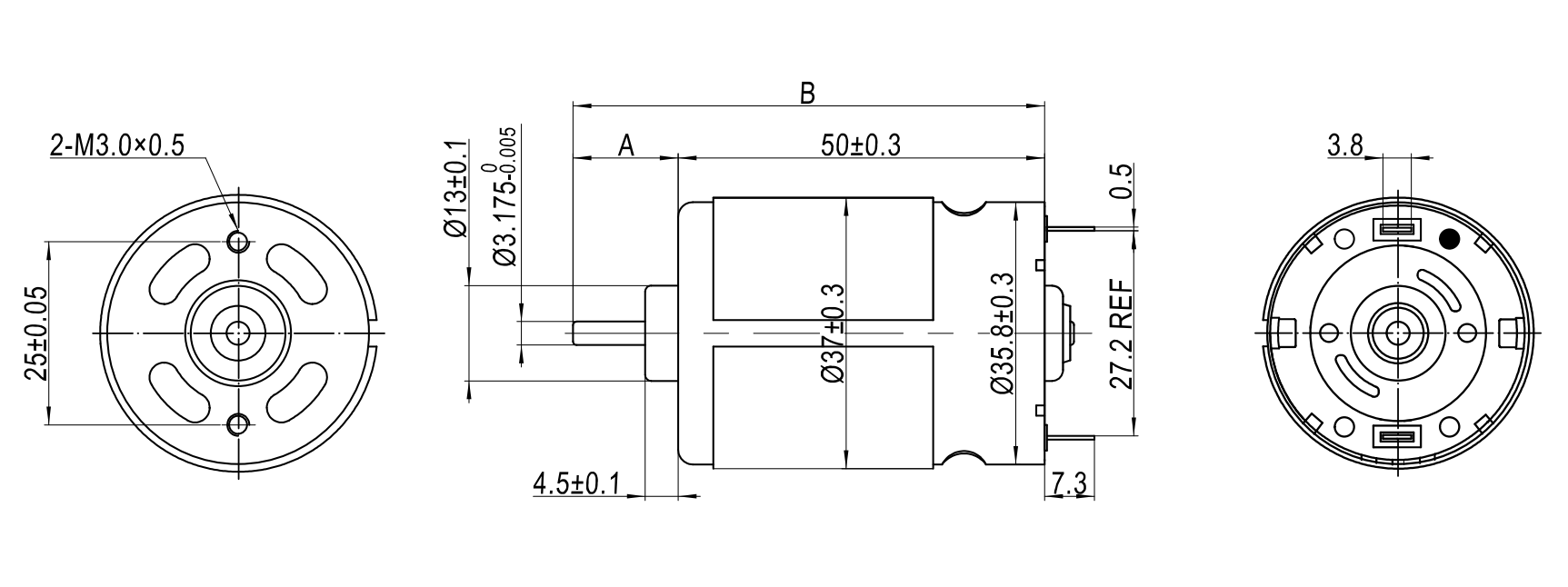

📐 Reference Drawings

RS - 545 A

RS - 555 A

RS - 575 A

The length of shaft can be customized.

📊 Reference Datasheet

PMDC MOTOR Technical Data
Model		Rated Voltage(V)		No-Load		Rated				Stall
Model		Range	Nominal	Speed(RPM)	Current(A)	Speed(RPM)	Current(A)	Torque(mN.m)	Power(W)	Current(A)	Torque(mN.m)
RS-550H	23128R	6.0~24.0	24VDC	4500	0.1	3932	0.39	25.7	10.6	4.8	204
RS-550H	6034	6.0~12.0	12VDC	16000	1.12	13613	4.96	25.6	40.36	48.89	281.4
RS-555H	3540	6.0~12.0	12VDC	7800	0.3	6708	1.84	21.9	15.35	11.31	156
RS-555H	23100	6.0~24.0	24VDC	7000	0.14	6004	0.77	19.2	12.09	4.2	124.5

🚀 Application

📜 Certifications

🏆 Why Choose Us

1. Expertise & Factory Experience

We are a factory specializing in motor production for more than 14 years. Our professional R&D team and mature management ensure a superior experience.

2. Strict Quality Control

To confirm quality, every step from material receipt to shipment is carefully checked. Quality is the basis of our development.

❓ FAQ

Are you a trading company or manufacturer?

We are a factory specializing in micro DC motors and DC gear motors for more than 14 years.

What are the payment terms for new customers?

We offer various secure online payment options including credit cards, online transfers, and other standard payment methods.

Can you customize a motor if I can't find a suitable one on the website?

Yes, we can customize a suitable motor according to our customer's specific requirements, including shaft length and technical specifications.

Do you have certificates for your motors?

Yes, we have CE, FCC, ISO, and other relevant certificates. We can also apply for other specific certificates if required.

How is your Quality Control process?

We have professional inspection staff at every process. We use advanced equipment such as Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, and Noise Testers to ensure complete quality assurance.

What is the typical operating range for these motors?

Our standard RS-555 and RS-550 series typically operate within a range of 6V to 24V DC, depending on the specific model and application needs.
