Shunli Motor Small Gear Motor 1.5V 3V 6V 12V DC Motor With Micro Gearbox Low Speed 30RPM 50RPM 80RPM for Intelligent Lock
Shunli Motor Small Gear Motor 1.5V 3V 6V 12V DC Motor With Micro Gearbox Low Speed 30RPM 50RPM 80RPM for Intelligent Lock
Shunli Motor Small Gear Motor 1.5V 3V 6V 12V DC Motor With Micro Gearbox Low Speed 30RPM 50RPM 80RPM for Intelligent Lock
Shunli Motor Small Gear Motor 1.5V 3V 6V 12V DC Motor With Micro Gearbox Low Speed 30RPM 50RPM 80RPM for Intelligent Lock
Shunli Motor Small Gear Motor 1.5V 3V 6V 12V DC Motor With Micro Gearbox Low Speed 30RPM 50RPM 80RPM for Intelligent Lock
1 / 5
Shunli Motor Small Gear Motor 1.5V 3V 6V 12V DC Motor With Micro Gearbox Low Speed 30RPM 50RPM 80RPM for Intelligent Lock
Shunli Motor Small Gear Motor 1.5V 3V 6V 12V DC Motor With Micro Gearbox Low Speed 30RPM 50RPM 80RPM for Intelligent Lock
Shunli Motor Small Gear Motor 1.5V 3V 6V 12V DC Motor With Micro Gearbox Low Speed 30RPM 50RPM 80RPM for Intelligent Lock
Shunli Motor Small Gear Motor 1.5V 3V 6V 12V DC Motor With Micro Gearbox Low Speed 30RPM 50RPM 80RPM for Intelligent Lock
Shunli Motor Small Gear Motor 1.5V 3V 6V 12V DC Motor With Micro Gearbox Low Speed 30RPM 50RPM 80RPM for Intelligent Lock

Shunli Motor Small Gear Motor 1.5V 3V 6V 12V DC Motor With Micro Gearbox Low Speed 30RPM 50RPM 80RPM for Intelligent Lock

Send Inquiry

Product Description

Product Display
!

Technical Specifications

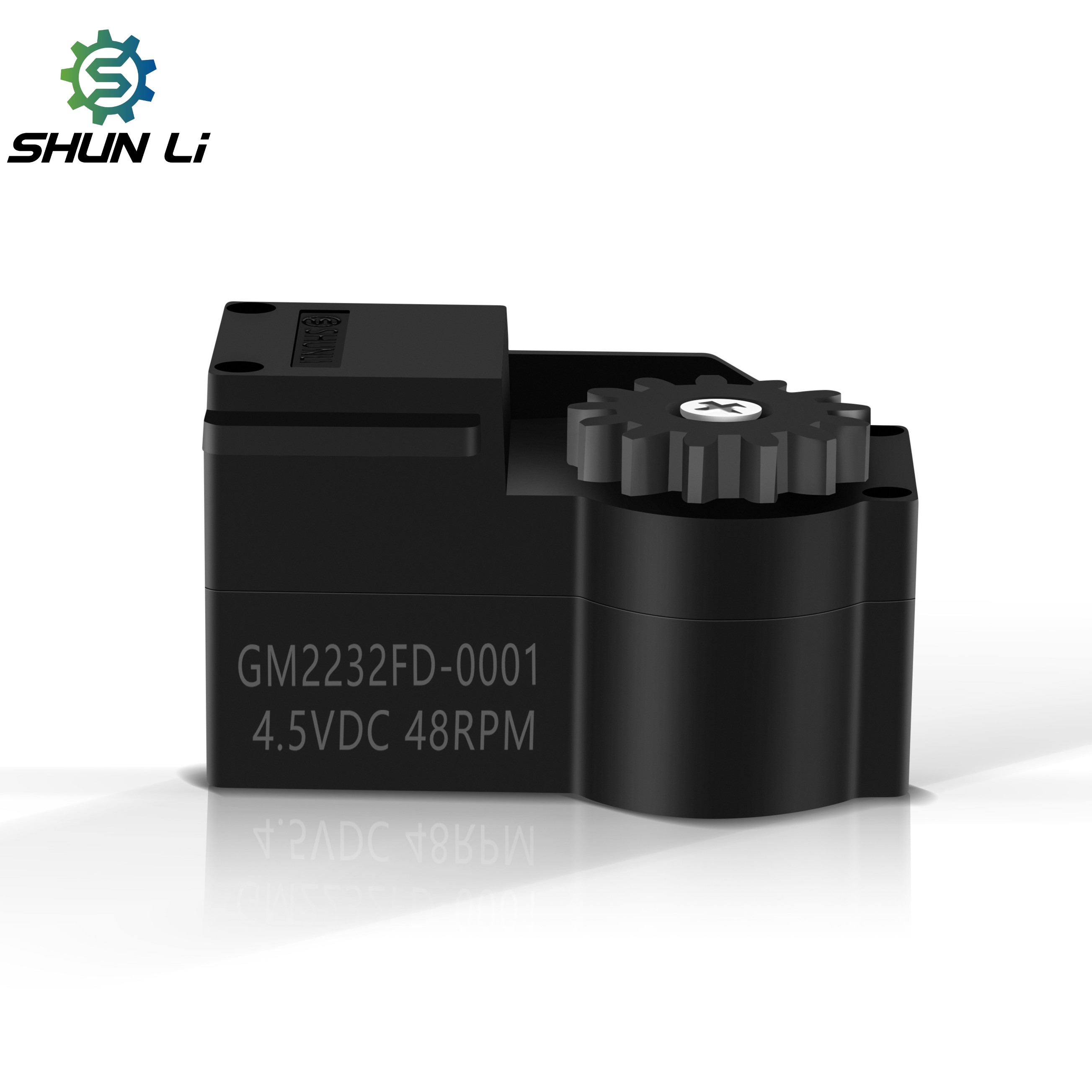

Motor Details
Product Model GM2232FD-0001
Ratio 1:267K
Speed 44RPM-55RPM
Voltage 4.5V
Rated Torque 40 mN.m
Customization Transmission Dimensions and Motor Parameters can be customized
⚙

Dimensions & Performance

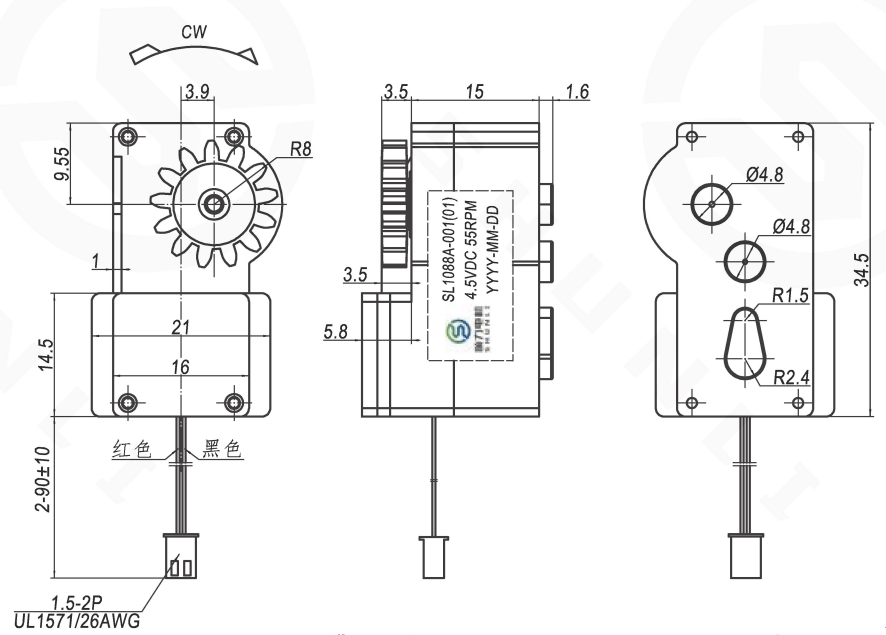

Technical Drawing

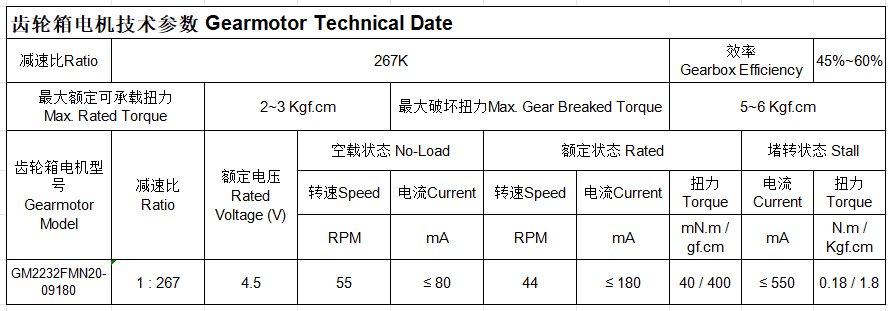

Performance Chart
★

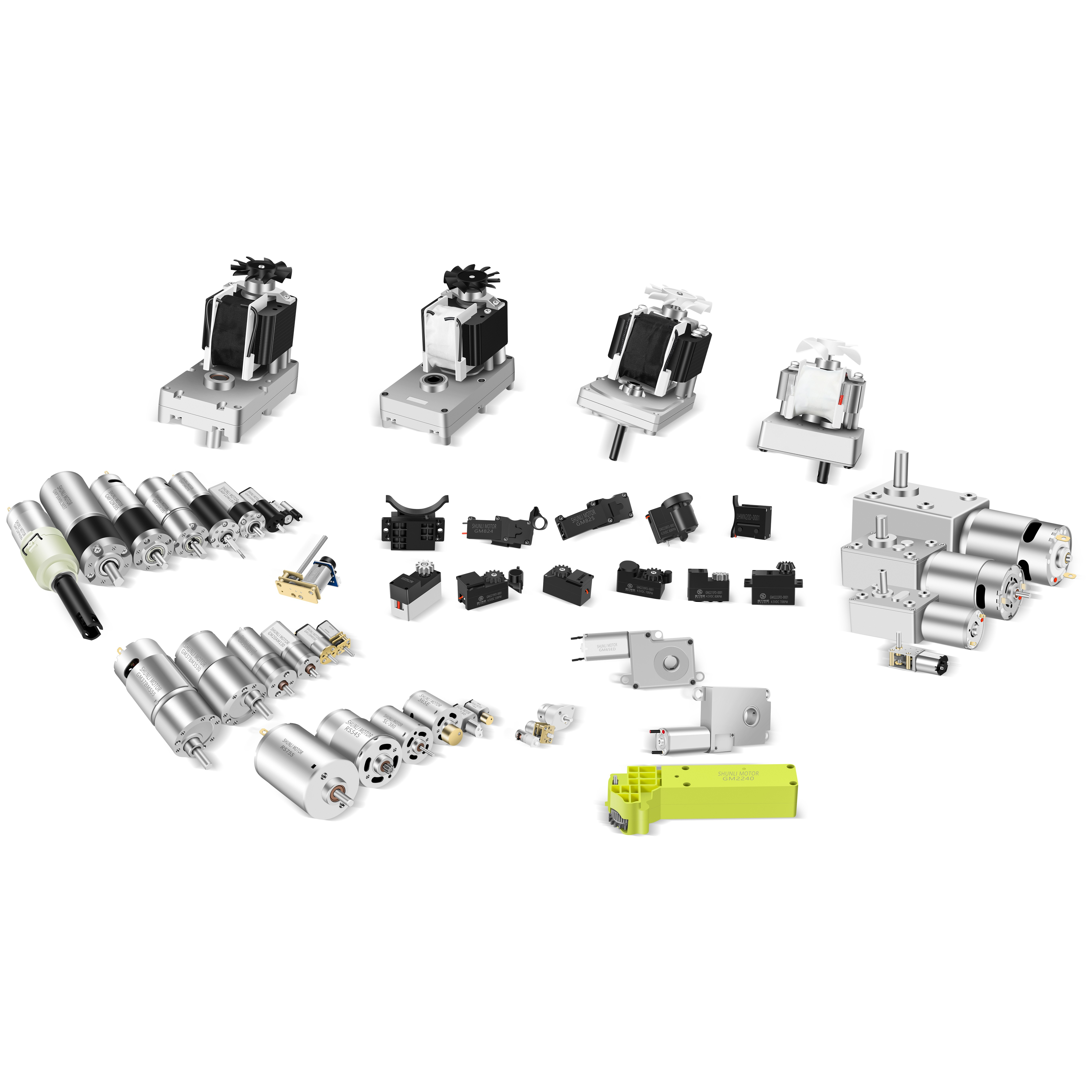

Product Exhibition

?

Frequently Asked Questions

1. Are you a trading company or a manufacturer?
We are a factory. We have specialized in micro DC motors and DC gear motors for more than 14 years.
2. What are the payment terms for new customers?
We offer multiple payment options including Online Assurance Orders (Master Card, Visa, etc.), PayPal, and TT transfers.
3. Can you customize a motor if I can't find a suitable one?
Yes, we provide full customization services to design a suitable motor according to your specific requirements.
4. Do your motors have official certifications?
Yes, our motors are certified with CE, FCC, ISO, and other relevant standards. We can also apply for specific certificates if required.
5. How do you ensure product quality control?
We have professional checking staff on every production line. After finishing, every motor undergoes comprehensive testing using specialized machinery.
6. What testing equipment do you use for quality assurance?
Our facility is equipped with Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise testers.
