Square Gearbox 100mm with 555 Dc 12v 24v Encoder Gear Motor Electric Lawn Mower Motor
Square Gearbox 100mm with 555 Dc 12v 24v Encoder Gear Motor Electric Lawn Mower Motor
Square Gearbox 100mm with 555 Dc 12v 24v Encoder Gear Motor Electric Lawn Mower Motor
Square Gearbox 100mm with 555 Dc 12v 24v Encoder Gear Motor Electric Lawn Mower Motor
Square Gearbox 100mm with 555 Dc 12v 24v Encoder Gear Motor Electric Lawn Mower Motor
1 / 5
Square Gearbox 100mm with 555 Dc 12v 24v Encoder Gear Motor Electric Lawn Mower Motor
Square Gearbox 100mm with 555 Dc 12v 24v Encoder Gear Motor Electric Lawn Mower Motor
Square Gearbox 100mm with 555 Dc 12v 24v Encoder Gear Motor Electric Lawn Mower Motor
Square Gearbox 100mm with 555 Dc 12v 24v Encoder Gear Motor Electric Lawn Mower Motor
Square Gearbox 100mm with 555 Dc 12v 24v Encoder Gear Motor Electric Lawn Mower Motor

Square Gearbox 100mm with 555 Dc 12v 24v Encoder Gear Motor Electric Lawn Mower Motor

Send Inquiry

Product Description

Product Showcase
⚙️ Technical Specifications
Motor Details
Product Model GM95SM545/555/575
Gearbox Length 95MM
Speed 14.5RPM ~ 65RPM
Voltage 24V / 24V / 12V
Torque 6N.m / 4 N.m / 1.2 N.m
Customization The Transmission Dimensions And Motor Parameters Can Be Customized
📐 Dimensional Drawings

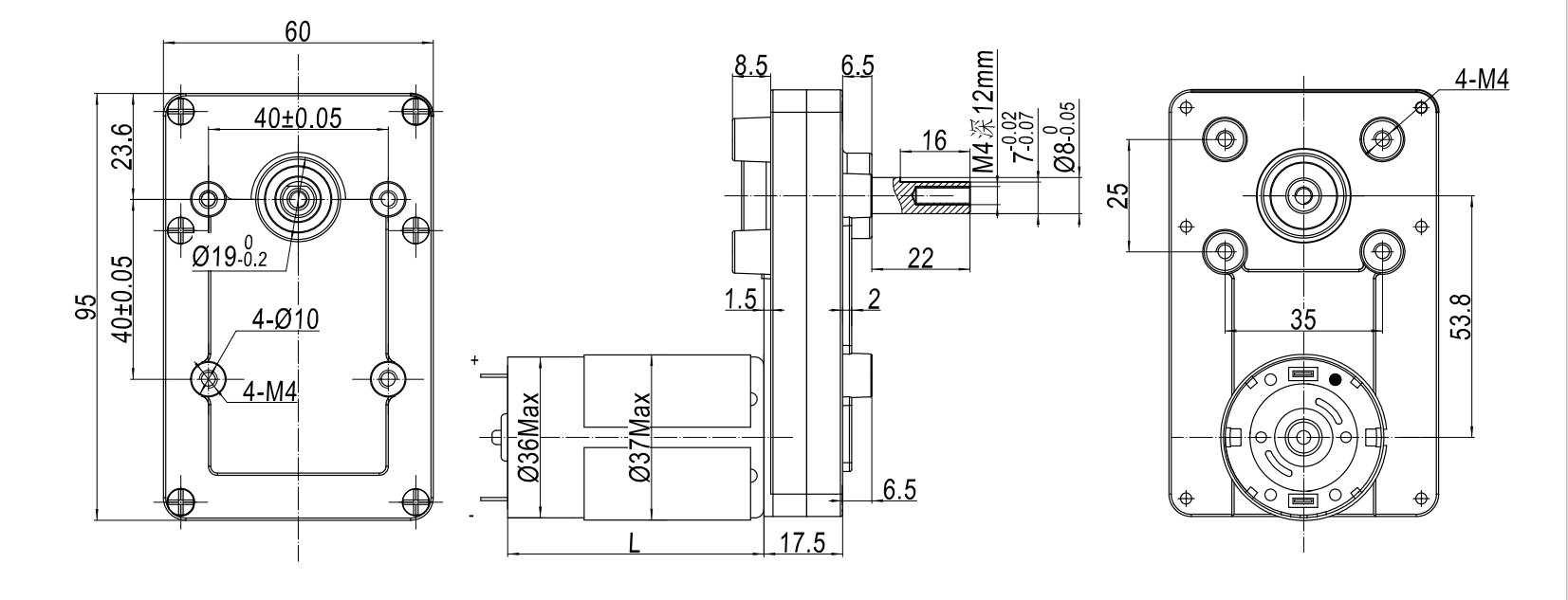

Dimensions 1

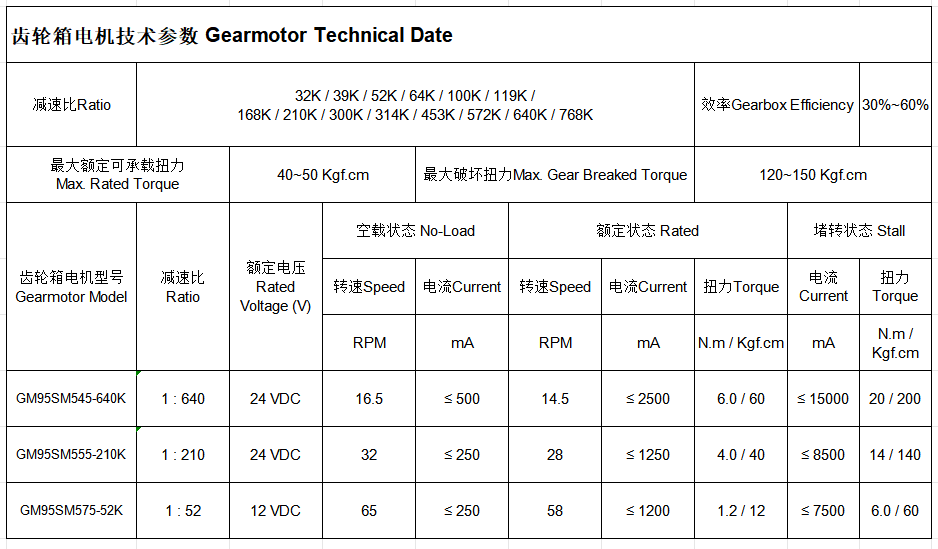

Dimensions 2
📸 Product Gallery
❓ Frequently Asked Questions
1. Are you a trading company or manufacturer?
We are a factory. We specialize in micro DC motors and DC gear motors for more than 14 years.
2. What is the payment term for new customers?
We can facilitate online assurance orders which accept MasterCard, Visa, etc. Customers can also pay via PayPal or TT.
3. Can you customize a motor if I can't find a suitable one on the website?
Yes, we can customize a suitable motor according to our customer's specific requirements.
4. Do you have certificates for the motors?
Yes, we have CE, FCC, ISO, etc. If you have other certificate requirements, we can apply for them for you.
5. How is your Quality Control?
We have professional checking staff on every production line. Finished motors undergo testing with Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise testers.
6. What parameters can be customized for the gear motors?
Both the transmission dimensions and specific motor parameters can be customized to fit your application needs.
