SRS-555 Dc Motor 12v 24v Micro Dc Motor for Toys

1 / 4

SRS-555 Dc Motor 12v 24v Micro Dc Motor for Toys

Send Inquiry

Product Description

⚙️ Product Description

SRS-555 12v 24v Micro DC Motor

💡

Customization Available: All motor specifications, including shaft length and performance parameters, can be customized to meet your specific application requirements.

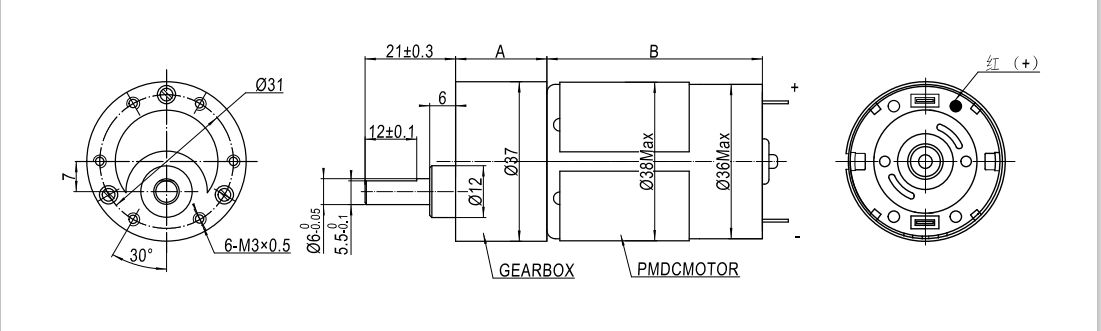

📐 Reference Drawings

Model: RS-545 A

Model: RS-555 A

Model: RS-575 A

📊 Technical Datasheet

Model Specification				No-Load		Rated Load				Stall
Model	Type	Operating Range (V)	Nominal (V)	Speed (RPM)	Current (A)	Speed (RPM)	Current (A)	Torque (mN.m)	Power (W)	Current (A)	Torque (mN.m)
RS-550H	23128R	6.0~24.0	24VDC	4500	0.1	3932	0.39	25.7	10.6	4.8	204
RS-550H	6034	6.0~12.0	12VDC	16000	1.12	13613	4.96	25.6	40.36	48.89	281.4
RS-555H	3540	6.0~12.0	12VDC	7800	0.3	6708	1.84	21.9	15.35	11.31	156
RS-555H	23100	6.0~24.0	24VDC	7000	0.14	6004	0.77	19.2	12.09	4.2	124.5

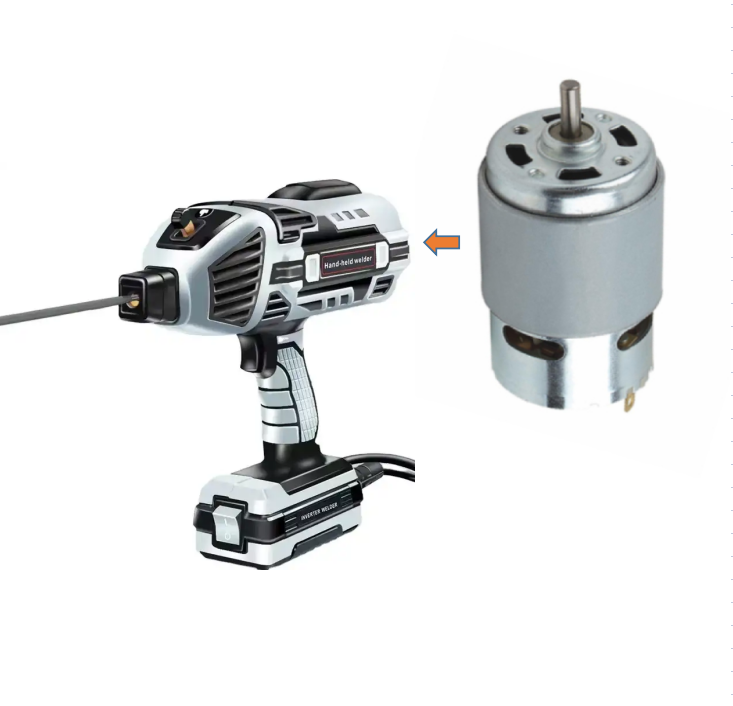

🚀 Product Application

📜 Certifications & Quality

Frequently Asked Questions

Are you a trading company or a manufacturer?

We are a specialized factory with over 14 years of experience in the design and production of micro DC motors and DC gear motors.

What payment methods do you support?

We offer various payment options for our customers, including Online Assurance Orders (Credit Card, Visa, etc.), PayPal, and T/T bank transfers.

Can you customize a motor if I cannot find a suitable one on your website?

Yes, we provide full customization services. We can design and manufacture a motor that meets your specific requirements for voltage, speed, torque, and dimensions.

Do your motors have international certifications?

Yes, our motors are certified with CE, FCC, and ISO standards. We can also apply for other specific certificates based on your market needs.

How do you ensure product quality?

We maintain a rigorous quality control process with professional staff at every production stage. Our testing facility includes Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, and Noise Testers to ensure every motor meets high-performance standards.

What is the typical lead time for customized orders?

Lead times vary depending on the complexity of the customization and order volume. Please reach out with your specifications for a precise delivery estimate.
