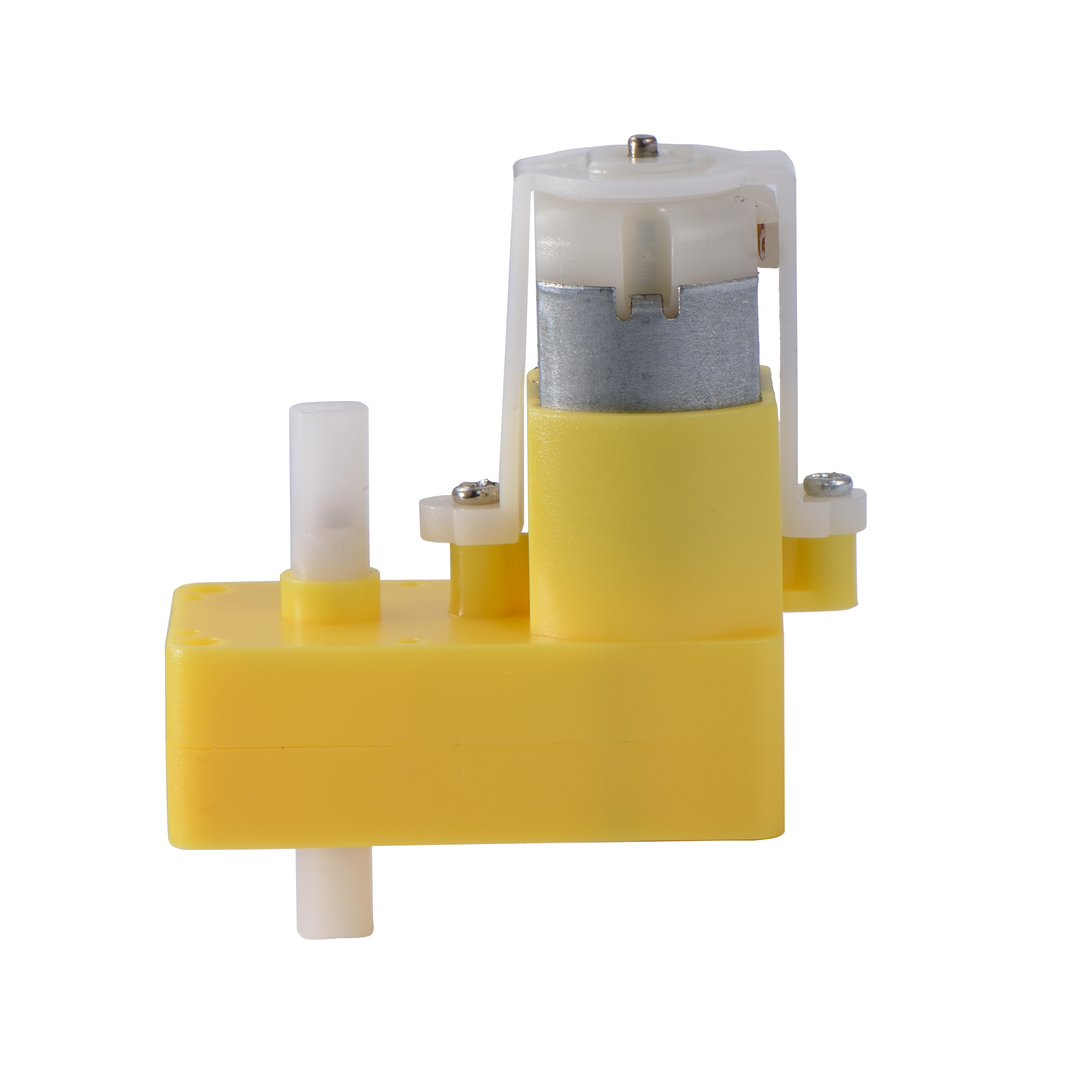

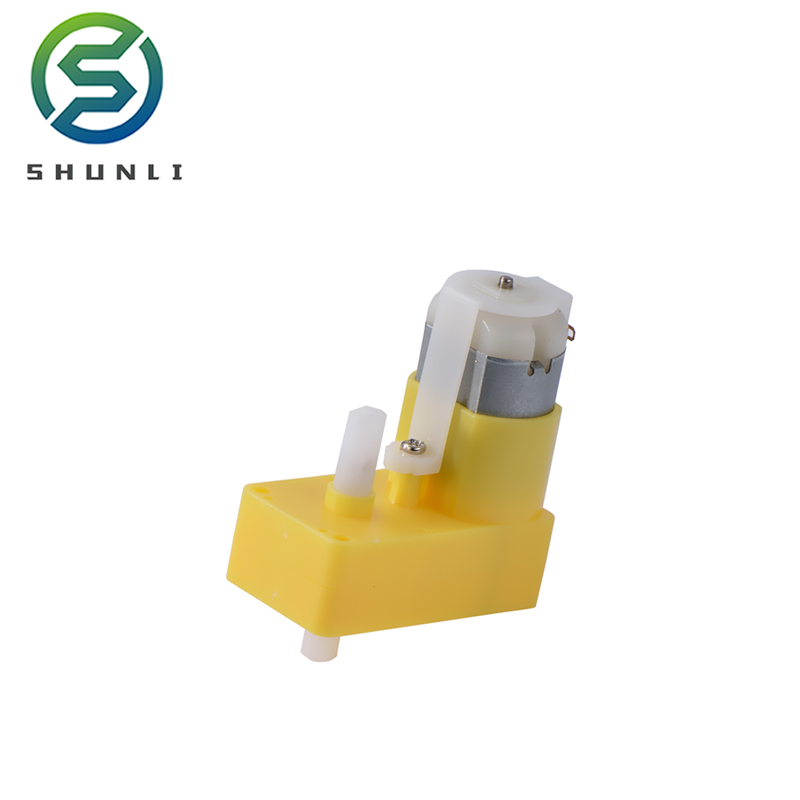

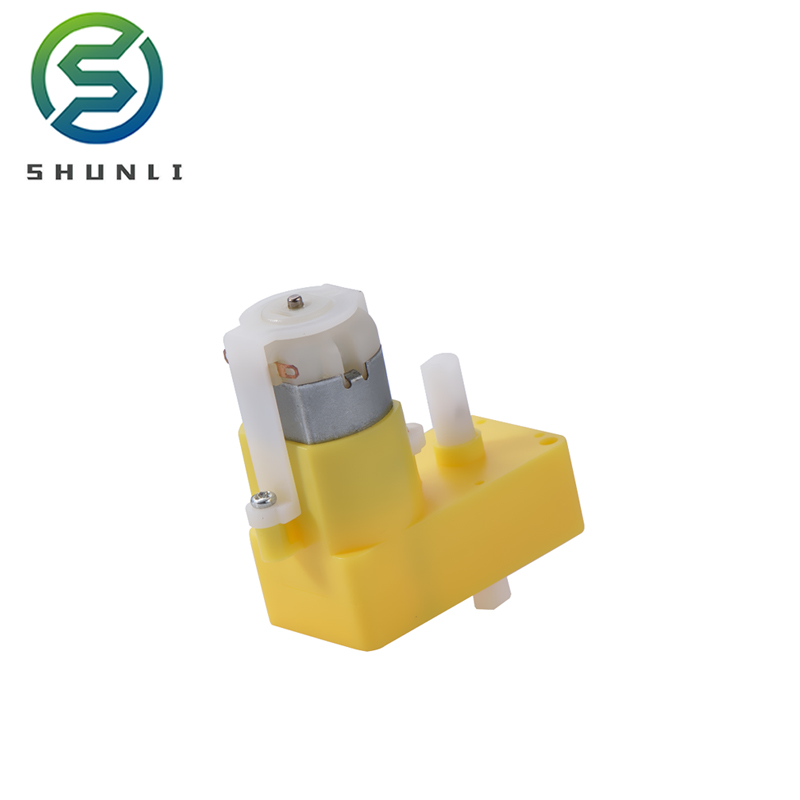

Yellow Dc Gear Motor with Plastic Wheels of Toy Car
Yellow Dc Gear Motor with Plastic Wheels of Toy Car
Yellow Dc Gear Motor with Plastic Wheels of Toy Car
Yellow Dc Gear Motor with Plastic Wheels of Toy Car
Yellow Dc Gear Motor with Plastic Wheels of Toy Car
1 / 5
Yellow Dc Gear Motor with Plastic Wheels of Toy Car
Yellow Dc Gear Motor with Plastic Wheels of Toy Car
Yellow Dc Gear Motor with Plastic Wheels of Toy Car
Yellow Dc Gear Motor with Plastic Wheels of Toy Car
Yellow Dc Gear Motor with Plastic Wheels of Toy Car

Yellow Dc Gear Motor with Plastic Wheels of Toy Car

Send Inquiry

Product Description

Yellow DC Gear Motor with Plastic Wheels for Toy Cars

Yellow Dc Gear Motor with Plastic Wheels of Toy Car
Yellow Dc Gear Motor Promotion
Yellow Dc Gear Motor Details

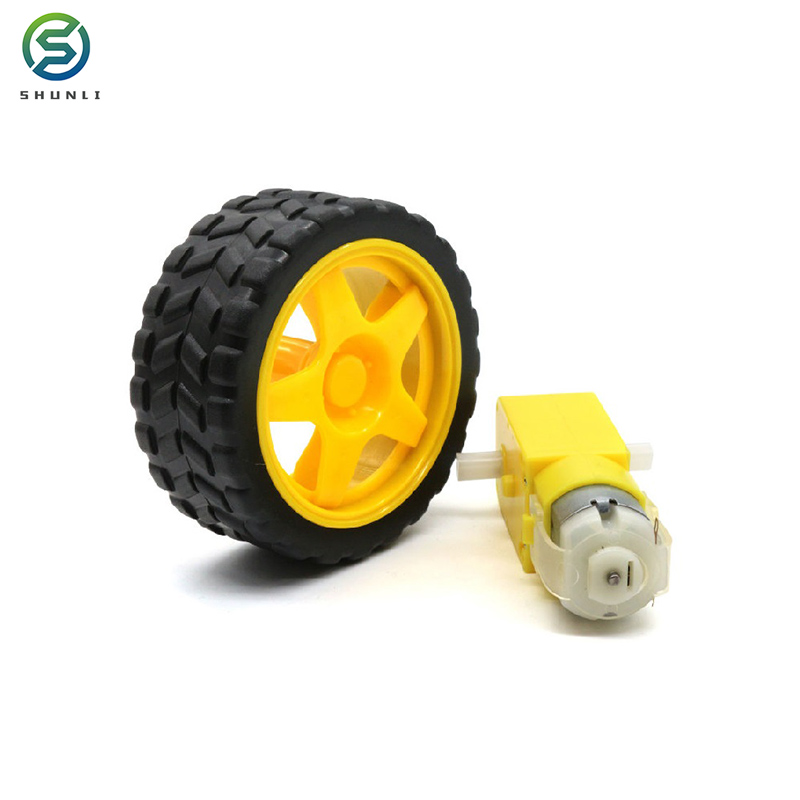

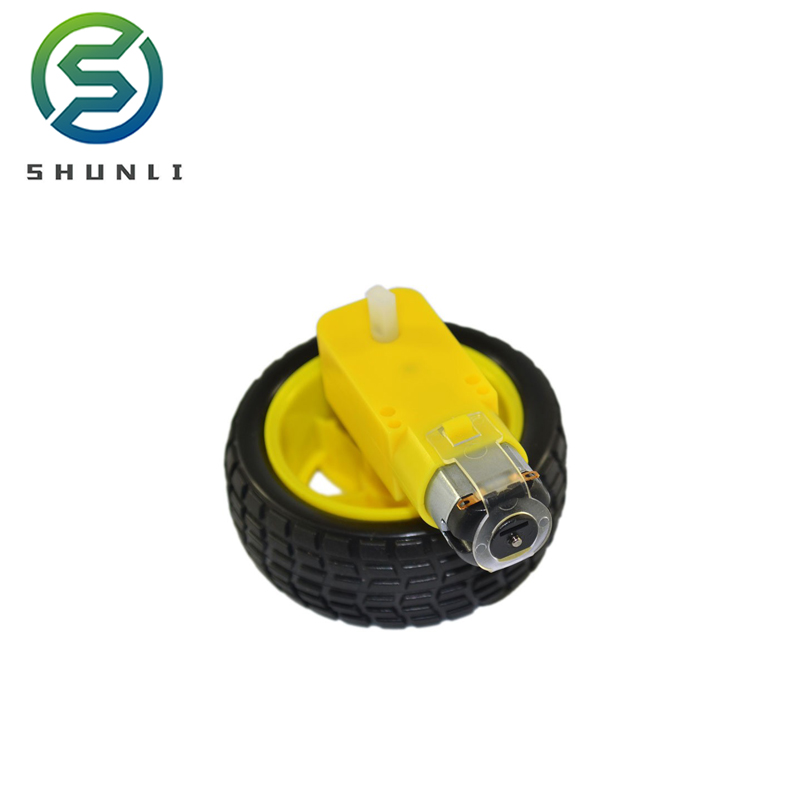

Toy Car Gear Motor and Wheel
Product Characters & Specifications
Model Voltage No-load Load Stall
Working Voltage (V) Rated Speed Current Speed Current Torque Power Stall torque Current
V rpm A rpm A N.m Kg.m W N.m Kg.m A
SGP01S-A130-14150-120 3-12.0V 4.5 100 0.2 87 0.5 0.066 0.675 0.4 0.265 2.7 1.25
SGP01S-A130-18100-220 3-12.0V 3.0 50 0.2 40 0.3 0.120 1.233 0.6 0.393 4.003 2.15
Dimensional Drawing
Production Process
Quality Control
Product Variety
Motor testing
Application display
Packaging
Frequently Asked Questions (FAQ)
What is the operating voltage for this DC gear motor?
This motor supports a wide working voltage range from 3V to 12.0V DC, making it versatile for various battery-powered projects.
What are the typical applications for the yellow gear motor?
It is primarily designed for toy cars, DIY robotics, smart car platforms, and educational electronic kits due to its lightweight plastic construction and integrated wheels.
Does the package include the plastic wheels?
Yes, this product is a combined set featuring the yellow DC gear motor paired with compatible plastic wheels for immediate assembly.
What is the maximum torque available?
Based on our technical specifications, the stall torque can reach up to 4.003 Kg.m (0.393 N.m) depending on the specific model and voltage input.
Are these motors suitable for precision speed control?
While these are brush DC motors typically used for simple movement, speed can be managed by varying the input voltage or using a PWM controller.
What are the no-load speed ratings?
The no-load speed ranges from 50 to 100 rpm depending on the rated voltage and specific model configuration selected.
